SK079W-025-SL-BR - Datasheet
MBA
Category Information

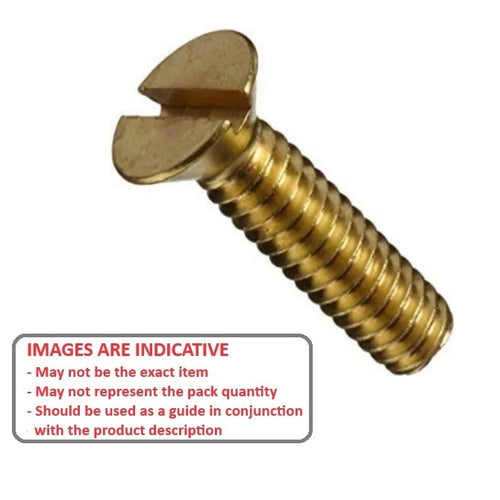

Screws - Countersunk - Slotted - BrassBrass Slotted Countersunk Screws. Flat Head Countersunk METRIC and BSW
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
- Thread Size (C) : 5/16-18 BSW (7.94mm)
- Overall Length (L)
25.4
mm
(Equiv. 1 in.) - Material Brass
- Max Head Diameter 15.16 mm
- Max Head Height 4.85 mm
- Type Countersunk / Slotted
- Pitch 1.411 mm
- Threads Per Inch 18 TPI
- Material Brass
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech BRCSP5161
