BF0024-0052-0064-DP - Datasheet
MBA
Category Information

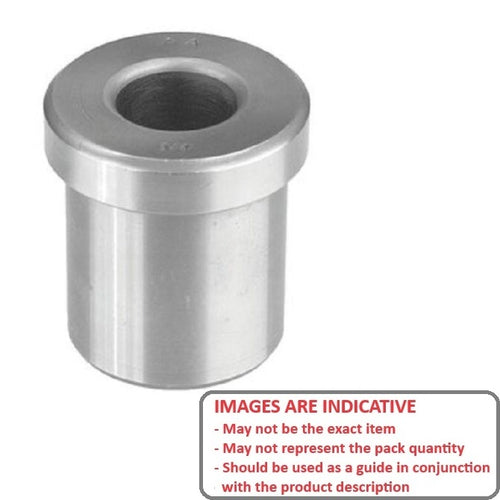

Bushings - Drill - Flanged - Press FitPress Fit Flanged Drill Bushings. Flanged press fit selection. Harden steel
- Hardened metal component that provides a precise guide for cutting tools, ensuring accurate and repeatable hole placement in jigs and fixtures.
- Constrains the drill bit, it reduces tool deflection and tool wear, leading to more consistent holes and longer tool life.
- Hardness: RC 62-64

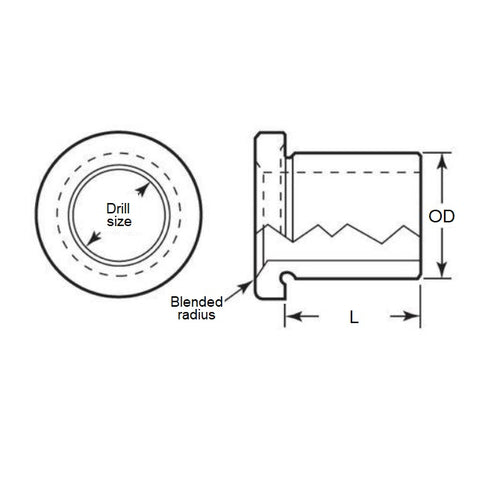

Product Data
- Outside Diameter (OD)
:
5.159
mm
+ 0.0254 / + 0.0330
(Equiv. 0.203 in.) - Drill Size
2.381
mm
+ 0.0025 / + 0.0102
(Equiv. 0.094 in.) - Length
6.350
mm
(Equiv. 0.25 in.) - Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 8492A003
- BHT10030
- BHT-10030
