DPS050-015-440-1 - Datasheet
NoCor
Category Information

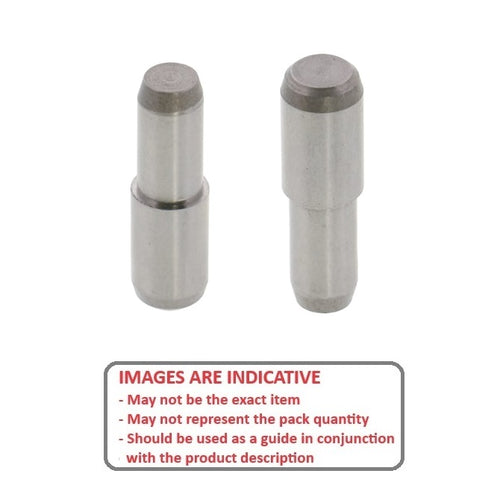

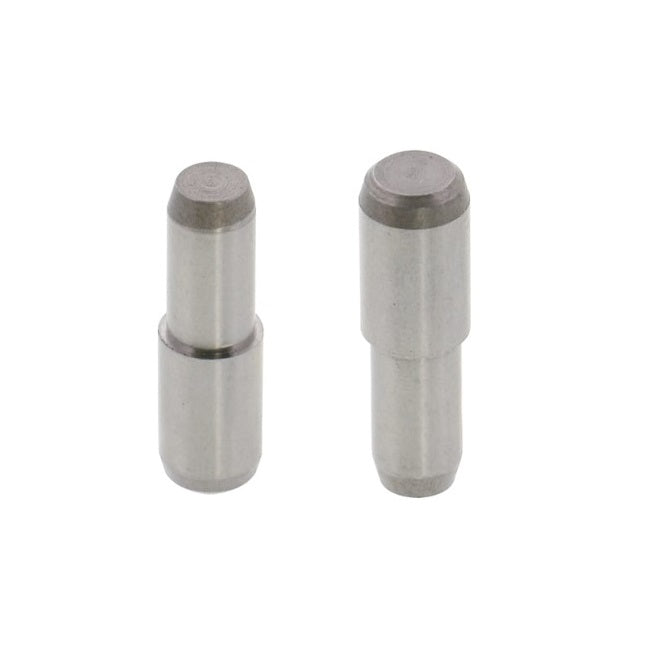

Pins - Dowel - Stepped - Chamfered Ends - 440 Stainless Steel440 Stainless Steel Chamfered Ends Stepped Dowel Pins. Precision Dowel Pins with a Step
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
Product Data

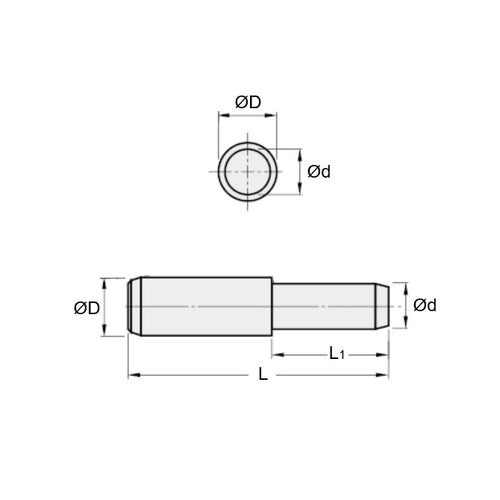

- Diameter (D)
:
5.000
mm
+ 0.005 / + 0.010
(Equiv. 0.197 in.) - Length (L)
15.00
mm
+ 0.005 / + 0.010
(Equiv. 0.591 in.) - Approx. Overall Length
15.00
mm
(Equiv. 0.591 in.) - Type 2 (Chamfer Both Ends)
- Step Diameter (d) 4.000 mm
- Step Length (L1) 5.00 mm
- ISO 2338
- Material Stainless Steel AISI 440C
Product Compliance and Data
Additional Resources
Cross References
- Misumi MSFWC5-15
- MSFWC515
