RCL-050-110-ZD - Datasheet
MBA
Category Information

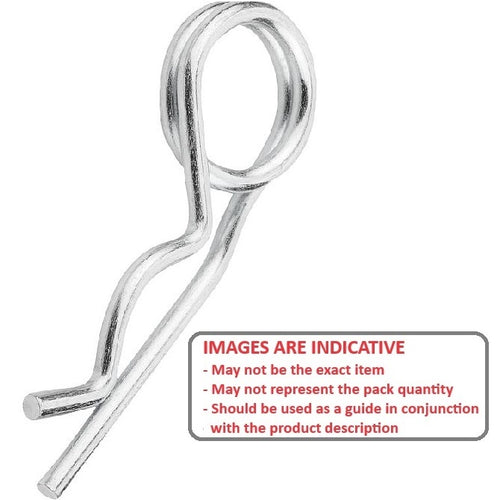

R Clips - Double Coil - SteelSteel Double Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- Material: Spring Wire
Product Data

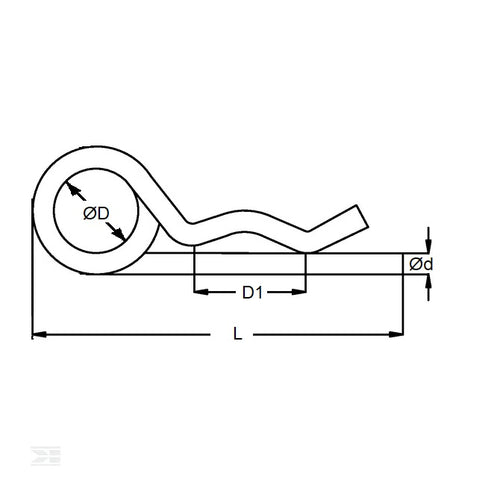

- Wire Thickness (d) : 5.00 mm
- Length (L) 110.0 mm
- Material Zinc Plated
- Drill Hole Size 5.50 mm
- Approx.Inside Eye (D) 22.00 to 26.00 mm
- Shaft Size Range 18.00 to 30.00 mm
- Approx. Bridge Length (D1) 40 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- RPD592
- RPD5-92
