DR-0050-B - Datasheet
MBA
Category Information

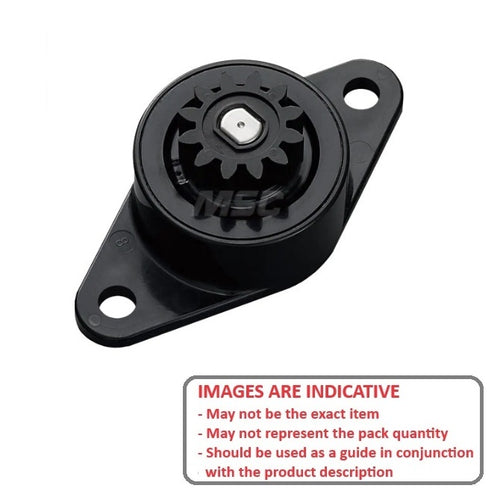

Dampers - Rotary - 5.0 to 15.0 Ncm5.0 to 15.0 Ncm Rotary Dampers. Rotary dampers enable products to function with a smooth mechanical motion. Prevent lid and access panel closure damage.
- An expanded range may be available on special order. Please enquire.
- Body: Polycarbonate / Gear: Polyacetal.
- Fluid: Silicone.
- Temp range 0 to 50 oC.
Product Data
- Damping Torque : 5.0 (+/- 1.0) Ncm
- Direction Bi-directional
- Max Speed 50 RPM
- Gear 1.0 Mod 12 tooth - 20 Deg Pressure Angle
Product Compliance and Data
Additional Resources
Cross References
- FRTD2501G1
- ACERD502
- ACE-RD502
