Miniature Bearings Australia - MBA Minibearings
Miniature Bearings Australia

W0040-F-008-200-BN - Datasheet

MBA

Category Information

Spacers - Through Bore Round - Brass

Brass Through Bore Round Spacers. Shaft spacers - Brass

  • An expanded range may be available on special order. Please enquire.

Product Data

  • ID (d) : 4 mm + 0.48 / + 0.28
    (Equiv. 0.157 in.)
  • OD (D) 8 mm + 0.0 / - 0.03
    (Equiv. 0.315 in.)
  • Length (L) 20 mm + / - 0.09
    (Equiv. 0.787 in.)
  • Material Brass - Nickel Plated
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • PLB4-20
  • PLB420
View full details

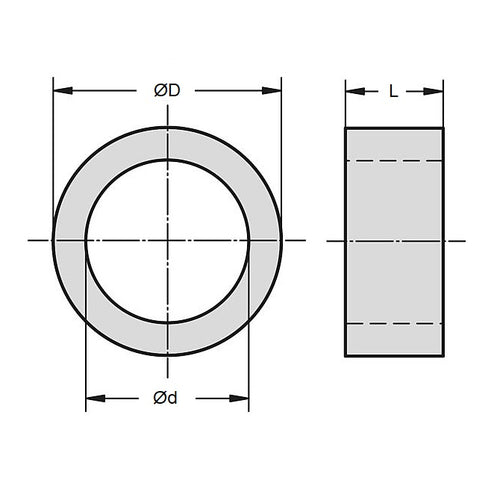

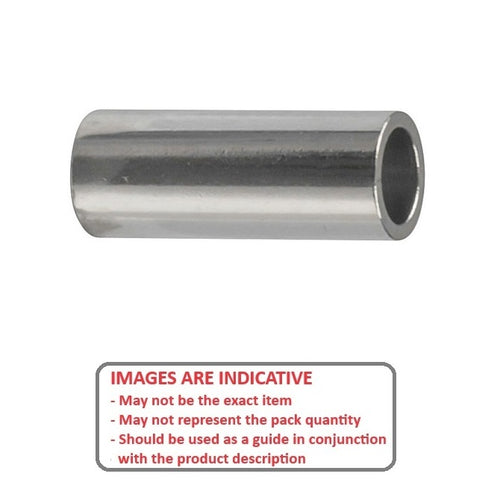

W0040-F-008-200-BNDiagramW0040-F-008-200-BNImage
