Miniature Bearings Australia

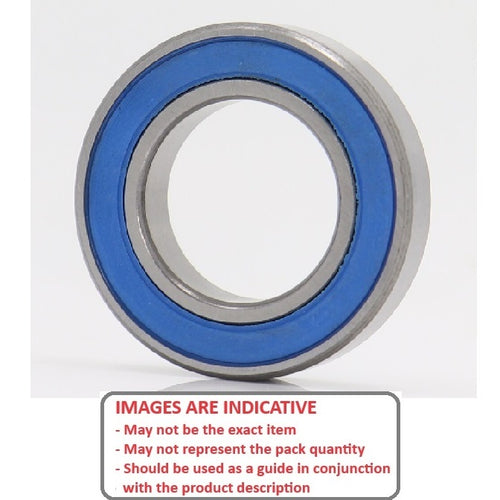

MR74A-2RB-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- ID (d)
:
4.000
mm
(Equiv. 0.157 in.) - OD (D)
7.000
mm
(Equiv. 0.276 in.) - Width (B)
2.500
mm
(Equiv. 0.098 in.) - Precision Grade Economy
- Closure Type 2RB
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part MR74A
- Limiting Speed 51300
- Cage Type Standard
- Static Load Rating KGf 10.4
- Dynamic Load Rating KGf 24.7
- Radii 0.10 mm
- Inner Shoulder (UI) 4.80mm
- Outer Shoulder (UO) 6.30 mm
- Number of Balls 11
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type 2RB
- Max Temperature 80 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- Corally - C4 - Bearing 4-7-2.5mm
- Duratrax - Vendett ST Truck - Bearing 4-7-2.5mm
- Hot Bodies - Cyclone - Bearing 4-7-2.5mm
- HPI - RS4 Pro 4 - Bearing 4-7-2.5mm
- Kyosho - EP Spider - Bearing 4-7-2.5mm
- Kyosho - Half 8 Mini Inferno - Bearing 4-7-2.5mm
- Kyosho - Pure Ten - Bearing 4-7-2.5mm
- Kyosho - TF3 Series - Bearing 4-7-2.5mm
- Kyosho - TF-4 Spider Type R - Bearing 4-7-2.5mm
- Losi - Mini LST - Bearing 4-7-2.5mm
- Losi - Mini T - Bearing 4-7-2.5mm
- Losi - Mini T Pro - Bearing 4-7-2.5mm
- Losi - Mini ZT - Bearing 4-7-2.5mm
- Robitronics - Scalpel Pro 1/8 - Bearing 4-7-2.5mm
- Serpent - Freedom T1 - Bearing 4-7-2.5mm
- Team Magic - G4S - Bearing 4-7-2.5mm
- Traxxas - Jato - Bearing 4-7-2.5mm
- Trinity - Itsy Bitsy Spyder - Bearing 4-7-2.5mm
- Xray - FK5 Electric - Bearing 4-7-2.5mm
- Xray - T1 - Bearing 4-7-2.5mm
- Xray - T1 Evo 2 - Bearing 4-7-2.5mm
- Xray - T1 Factory Kit - Bearing 4-7-2.5mm
- Xray - T1 FK 05 Complete - Bearing 4-7-2.5mm
- Xray - T1 Racer - Bearing 4-7-2.5mm
- Xray - T1M Mini - Bearing 4-7-2.5mm
- Xray - T2 Complete - Bearing 4-7-2.5mm
- Xray - T2 With Steering - Bearing 4-7-2.5mm
- Xray - X Ray - Bearing 4-7-2.5mm
Cross References
- Sealed Width A MR74 / 2
- Sealed MR74A / 2
- MR74A Basic Size Ref
