PC040-0400-Z - Datasheet
MBA
Category Information

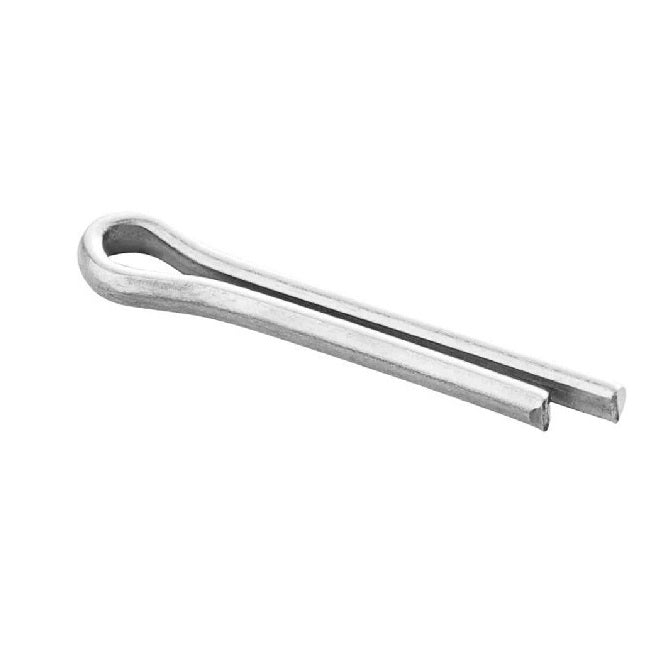

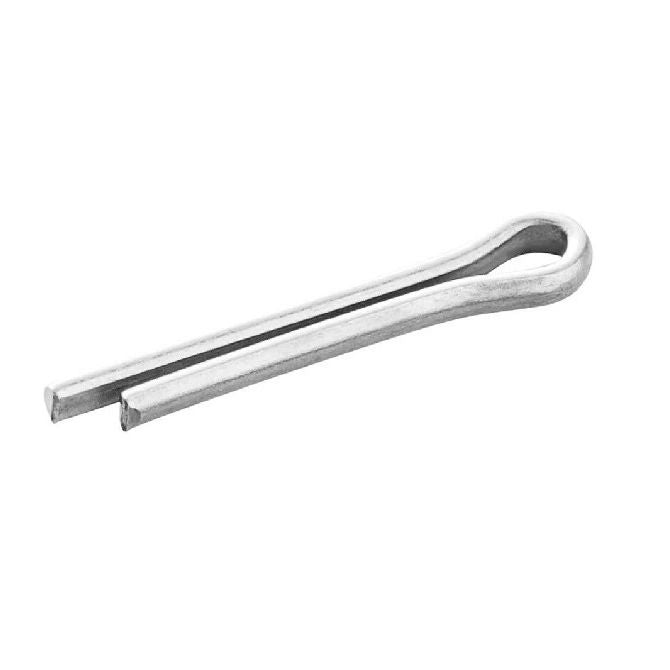

Pins - Split - Zinc PlatedZinc Plated Split Pins. Longer lengths may be cut back to a suitable length.
- An expanded range may be available on special order. Please enquire.
- Hole size indicated is maximum for the pin to be effective.
- If the pin you require is not available, you may be able to use the next larger diameter so long as the pin is smaller than your hole size.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Maximum Hole Diameter
:
4.0
mm
(Equiv. 0.157 in.) - Nom. Pin Length (L)
40.0
mm
(Equiv. 1.575 in.) - Nom. Pin Diameter (D)
3.6
mm
(Equiv. 0.142 in.) - Nom. Overall Length 48 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- 98350A370
- Hitech MSSPZP440
