PSP-040-040-C - Datasheet
MBA
Category Information

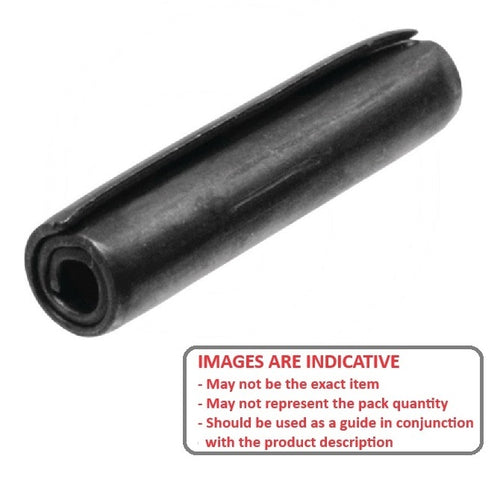

Pins - Coiled - Steel - Standard DutyStandard Duty Steel Coiled Pins. ASME B18.8.3M / ISO 8750 Standard Duty Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter : 4.00 mm
- Length
40.00
mm
+/- 0.50
(Equiv. 1.575 in.) - Drill Size 4.00 - 4.12 mm
- Loose Diameter 4.20 - 4.40 mm
- ISO Standard Duty ISO8750 / ASME B18.8.3M
- Hardness RC 46-53 (HV 420 to 545)
- Double Shear Strength Min. 10 Kn
- Material High Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Huyett® SPCM-040-040
- SEP4-40
- SEP440
