TPM-0400-03000-M - Datasheet
MBA
Category Information
Pins - Taper Metric - Carbon SteelCarbon Steel Taper Metric Pins. Metric Sizes Tapered 1:50. DIN 1 - A - Ground Ra 0.8um
- An expanded range may be available on special order. Please enquire.
- Metric Sizes to DIN 1.
Product Data

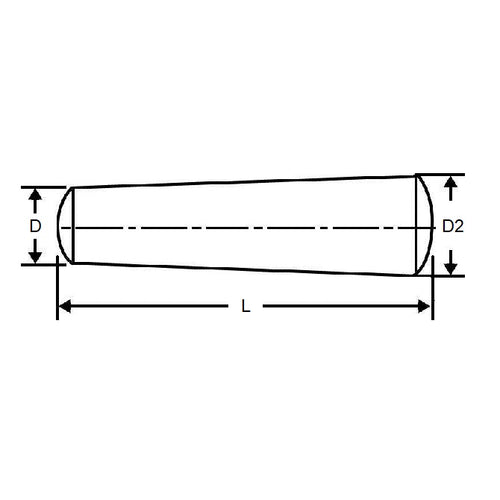

- Nom. Small End Diameter (D) : 4.00 mm
- Length (L) 30.00 mm
- Nom. Large End Diameter (D2) 4.60 mm
- Hardness 21 Rc +/- 8
- Material Carbon Steel Unhardened
Product Compliance and Data
Additional Resources
Cross References
- 98445A417
- Huyett® TPM-040-030
- NoCor® TPM-040-030
- TP4-30
- TP430
- TPM040030
