WRE-0040-RD - Datasheet
MBA
Category Information

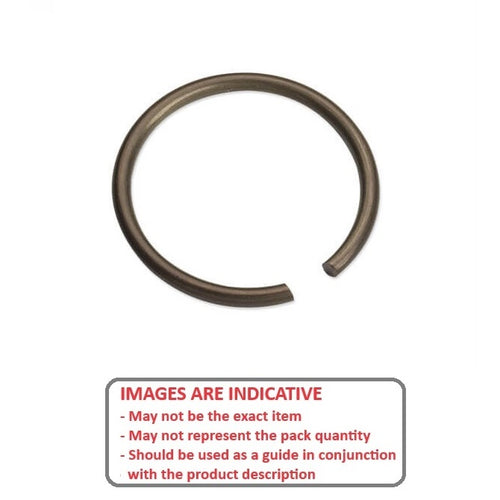

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.

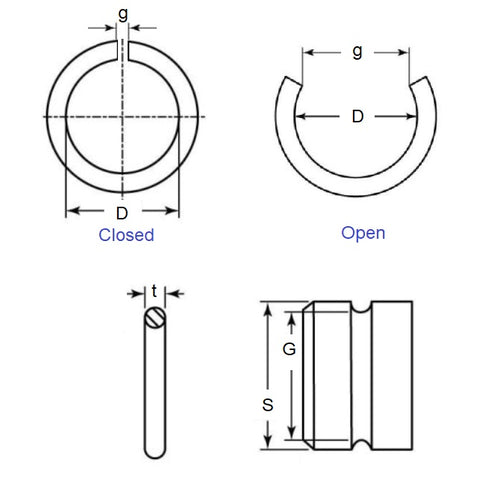

Product Data
- Shaft Diameter (Ds)
:
4.00
mm
(Equiv. 0.157 in.) - Clip Thickness (T)
0.80
mm
(Equiv. 0.031 in.) - Groove Dia. (Dg)
3.15
mm
+ 0 / - 0.20
(Equiv. 0.124 in.) - Approx. Loose Circlip ID (A) 3.1 mm
- Radial Wall (S) min/max 3.15 mm +/- 0.05
- Groove Width (W) 1.0 mm Min.
- Free Outside Dia (Dr) 4.7
- Section Profile Round Section
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DRP-004
- DRP004
