ACE112RS - Datasheet

ACE

Category Information

Shock Absorbers - Full Threaded - Adjustable

Adjustable Full Threaded Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 48.5 mm
      (Equiv. 1.909 in.)
    • Thread (T) 2.1/2-12
    • Length (A) 224.79 mm
      (Equiv. 8.85 in.)
    • Shaft Diameter (D) 19.05 mm
    • Effective Weight 272.16 - 52163.12 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE112
      • ACE-112
      View full details

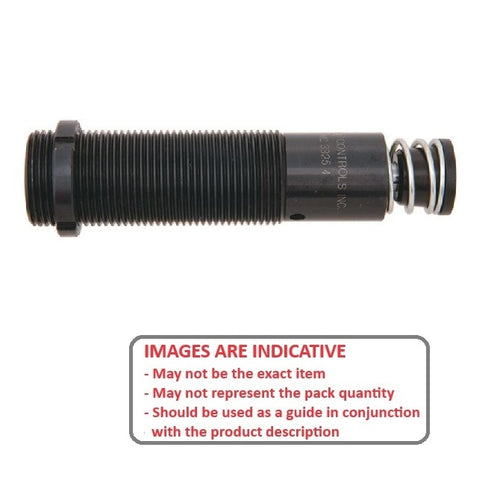

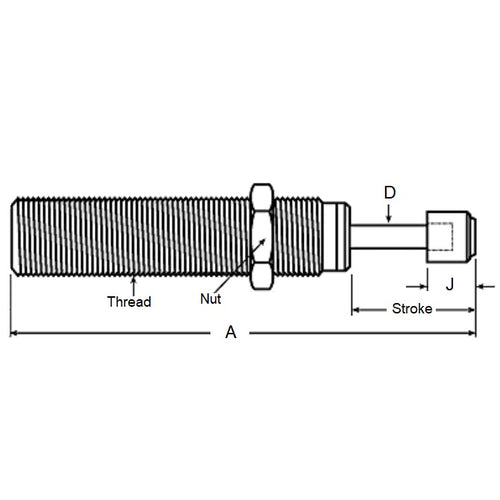

      ACE112RSDiagramACE112RSImage
