ACE110RS - Datasheet

ACE

Category Information

Shock Absorbers - Full Threaded - Adjustable

Adjustable Full Threaded Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 48.5 mm
      (Equiv. 1.909 in.)
    • Thread (T) 1.3/8-12 UNF (34.93mm)
    • Length (A) 188.98 mm
      (Equiv. 7.44 in.)
    • Shaft Diameter (D) 9.53 mm
    • Effective Weight 12.70 - 2449.40 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE-110
      • ACE110
      View full details

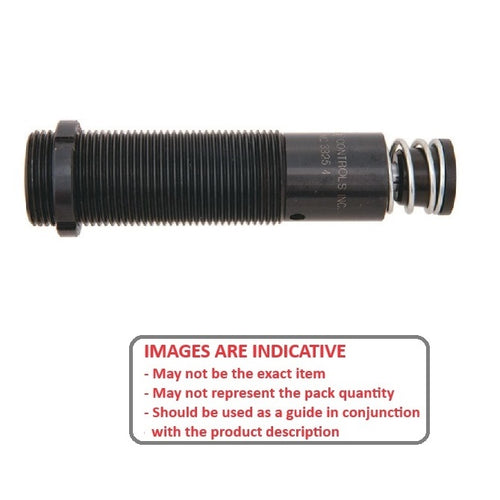

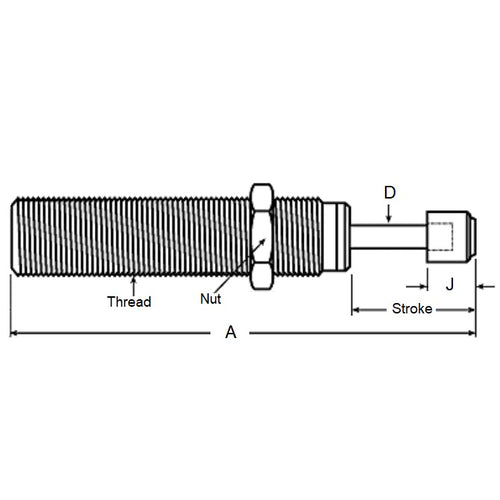

      ACE110RSDiagramACE110RSImage
