ACE45501RS - Datasheet

ACE

Category Information

Shock Absorbers - Full Threaded - Soft Contact Self-Compensating

Soft Contact Self-Compensating Full Threaded Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 48.5 mm
      (Equiv. 1.909 in.)
    • Thread (T) 1.3/4-12
    • Length (A) 195.33 mm
      (Equiv. 7.69 in.)
    • Shaft Diameter (D) 12.70 mm
    • Effective Weight 45.36 - 181.44 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE45501
      • ACE-4550-1
      View full details

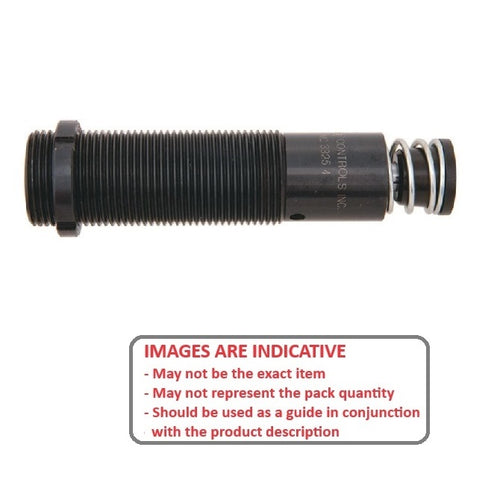

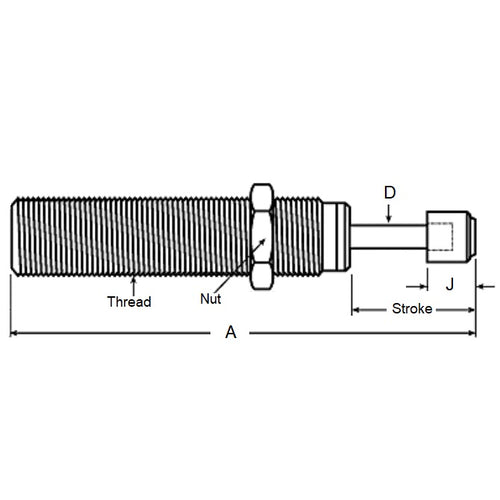

      ACE45501RSDiagramACE45501RSImage
