ACE33502RS - Datasheet

ACE

Category Information

Shock Absorbers - Full Threaded - Soft Contact Self-Compensating

Soft Contact Self-Compensating Full Threaded Shock Absorbers. This is the main category in this series

    Product Data

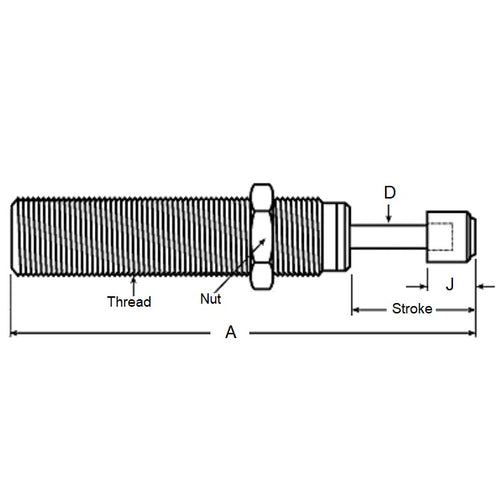

    • Stroke : 48.5 mm
      (Equiv. 1.909 in.)
    • Thread (T) 1.1/4-12 UNF (31.75mm)
    • Length (A) 188.98 mm
      (Equiv. 7.44 in.)
    • Shaft Diameter (D) 9.53 mm
    • Effective Weight 61.69 - 246.75 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE33502
      • ACE-3350-2
      View full details

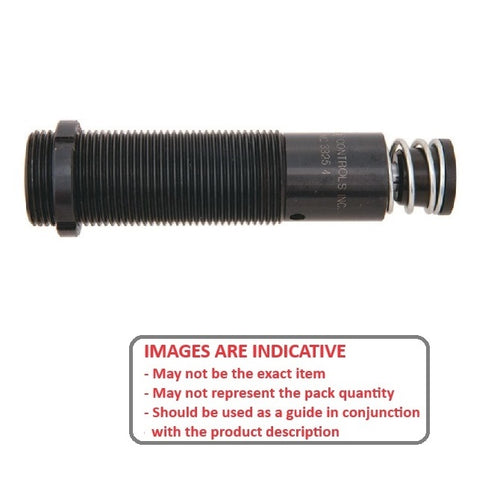

      ACE33502RSDiagramACE33502RSImage
