E32209J - Datasheet

MBA

Category Information

Bearings - Tapered Roller Set - Single Row - Metric

Metric Single Row Tapered Roller Set Bearings. Includes cup and cone

  • Tapered roller bearings provide for high thrust and axial loads, and are commonly used in automotive applications such as wheels, differentials and gearboxes.
  • Matched sets include the cup and the cone.
  • An expanded range may be available on special order. Please enquire.

Product Data

  • Inside Diameter : 45 mm
    (Equiv. 1.772 in.)
  • Outside Diameter 85 mm
    (Equiv. 3.346 in.)
  • Assembled Width 24.750 mm
    (Equiv. 0.974 in.)
  • Cone Width 23 mm
  • Cup Width 19 mm
  • Radius Cone (min) 1.500 mm
  • Radius Cup (min) 1.500 mm
  • Basic Dynamic Load 83500 N
  • Basic Static Load 102000 N
  • Limiting Speed for Grease 4400
  • Limiting Speed for Oil 6000
  • Material Chrome Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

    View full details

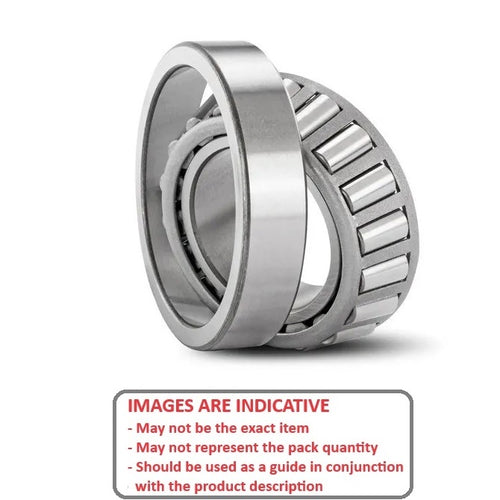

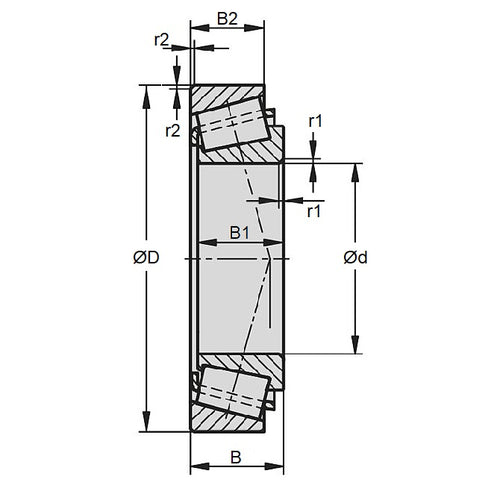

    E32209JDiagramE32209JImage
