PBC-725RS - Datasheet
MBA
Category Information

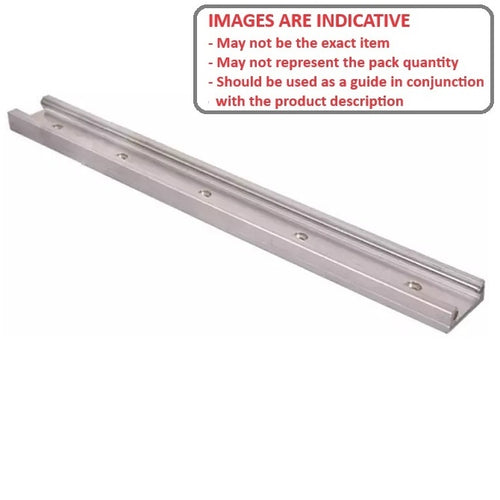

Linear - Redi-Rail RailRedi-Rail Rail Linear. Match carriage and rail by rail widh
- Easy to use system can be installed into many applications including packaging, material handling, automation and assembly equipment.
- A complete unit consists of a roller guide and rail (sold separately). The roller guide is made from 6061-T6 aluminium base with 3 rollers.
- Rollers made from 52100 hardened steel, lubricated and sealed.
- Rail made from 6061-T6 aluminium with hardened and ground steel raceways for the rollers to run on.
Product Data

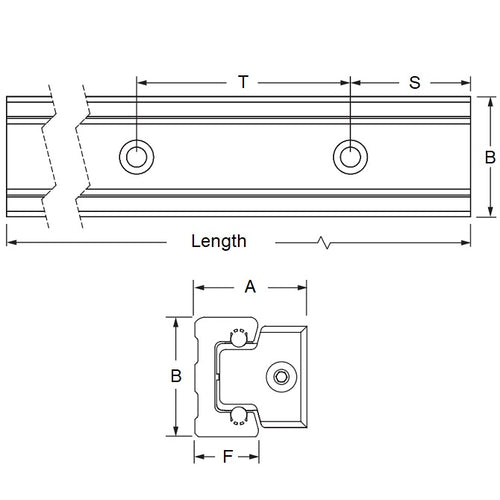

- Width (B)
:
45.0
mm
(Equiv. 1.772 in.) - Length
960.0
mm
(Equiv. 37.795 in.) - Height (F)
20.500
mm
(Equiv. 0.807 in.) - Bolt Distance from End (S) 30.0 mm
- Bolt Spacing (T) 60.000 mm
- Bolt Size (X) M6
- No. Of Holes 16.000
Product Compliance and Data
Additional Resources
Cross References
- Pacific RR45-960
- RR45960
