COL-04445-070-22-S4 - Datasheet
MBA
Category Information

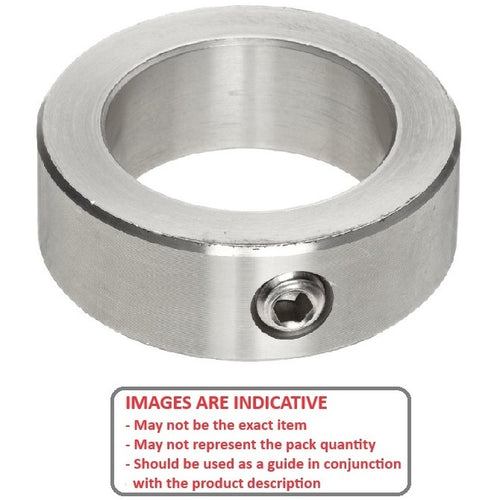

Collars - Shaft - Standard - Stainless SteelStainless Steel Standard Shaft Collars. Includes miniature precision types. 303 and 316 Types.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
44.450
mm
(Equiv. 1.75 in.) - Outside Diameter (D)
69.85
mm
(Equiv. 2.75 in.) - Overall Width (S)
22.2
mm
(Equiv. 0.874 in.) - Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 6462K38
- NoCor SC-1750-SS
- SC1750SS
