4R-0445-0300-KS3U - Datasheet
ExaktKey
Category Information

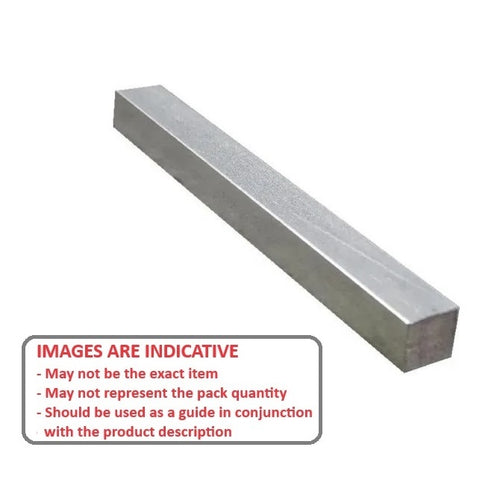

Keysteel Lengths - Square - Stainless SteelStainless Steel Square Keysteel Lengths. 303, 304 and 316 grade key steel. Square stainless steel bar that can be used for keysteel or for small construction projects.
- An expanded range may be available on special order. Please enquire.
- Use oversized for replacing keys where the keyway may be slightly worn - standard aftermarket keysteel
- Use undersized for manufacturing and new applications where the keyway tolerances can be controlled
Product Data

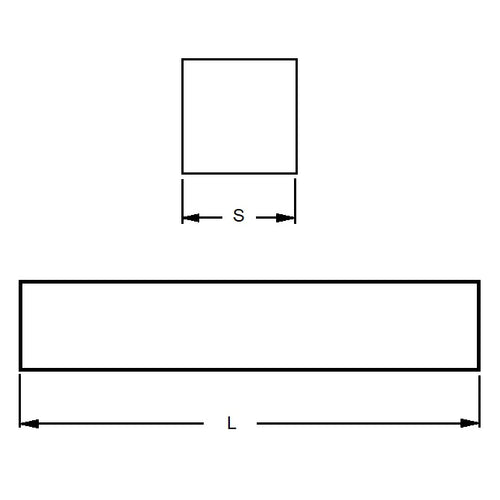

- Width (s1)
:
44.450
mm
+ 0 / - 0.152
(Equiv. 1.75 in.) - Height (s2)
44.450
mm
+ 0 / - 0.152
(Equiv. 1.75 in.) - Length (L)
300
mm
+ 8.0 / - 3.2
(Equiv. 11.811 in.) - Tolerance Type Standard Undersized
- Red End Colour Code
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- NoCor 7017501750-12
- 92530A270
- 701750175012
