CCI-04200H-C - Datasheet
MBA
Category Information

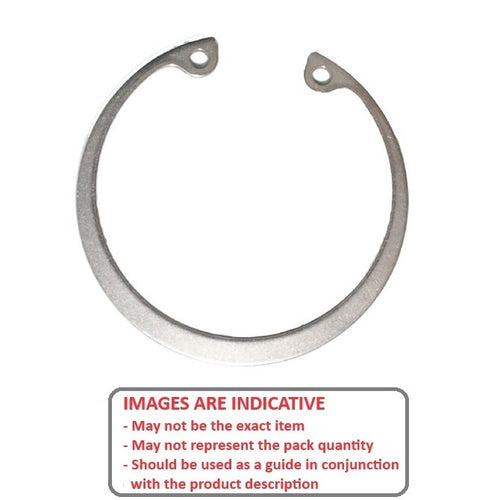

Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
42.00
mm
(Equiv. 1.654 in.) - Clip Thickness (T)
2.00
mm
+ 0.25 / - 0.00
(Equiv. 0.079 in.) - Groove Dia. (Dg)
44.45
mm
+ 0.00 / - 0.06
(Equiv. 1.75 in.) - Approx. Loose Circlip OD (Dr) 45.50 mm + 0.90 / - 0.39
- Groove Width (W) 2.15 mm + 0.10 / - 0.00
- Standard DIN472
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DHOR-042
- Seeger JS42X2
- 13600420
- 1360-0420
- D1360-0420
- DHOR042
- D13600420
