CCI-04286-C - Datasheet
MBA
Category Information

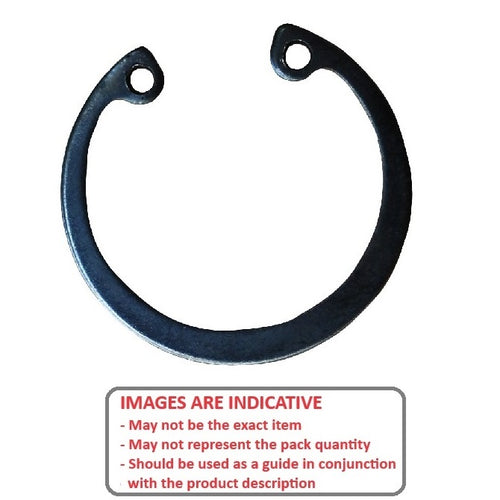

Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
42.86
mm
(Equiv. 1.687 in.) - Clip Thickness (T)
1.57
mm
+/- 0.127
(Equiv. 0.062 in.) - Groove Dia. (Dg)
45.52
mm
+ 0.00 / - 0.06
(Equiv. 1.792 in.) - Approx. Loose Circlip OD (Dr) 47.60 mm + 0.89 / - 0.64
- Groove Width (W) 1.73 mm + 0.10 / - 0.00
- Clearance in Bore (C) 32.26 mm
- Clearance in Groove (C1) 35.05 mm
- Min. Lug Diameter (h) 1.93 mm
- Min. Extension (n) 3.96
- Standard MIL-16625
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 99142A570
- NoCor HO-168
- HO168
- N13000168
- N1300-0168
