Miniature Bearings Australia
RR1030RS - Datasheet
MBA
Category Information

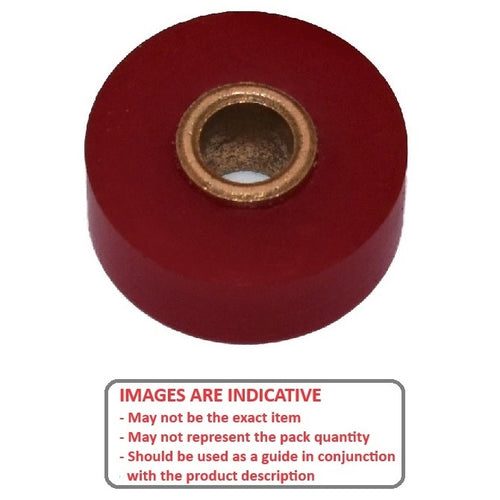

Rollers - Idler with Bearing - Urethane With Plain Sintered BearingUrethane With Plain Sintered Bearing Idler with Bearing Rollers. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data

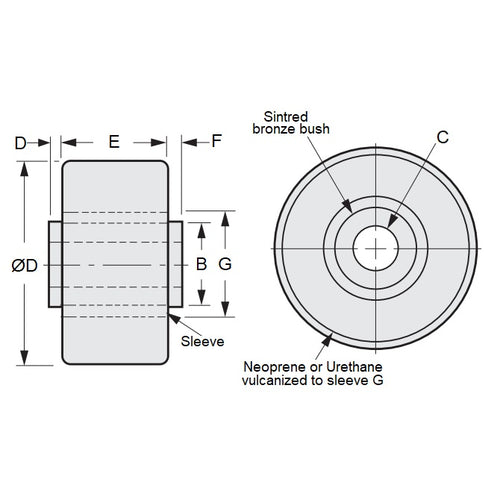

- Outside Diameter (A)
:
41.28
mm
(Equiv. 1.625 in.) - Bore (d)
9.550
mm
(Equiv. 0.376 in.) - Roller Width (B)
12.70
mm
(Equiv. 0.5 in.) - Roller Material Neoprene
- Roller Hardness 55 Durometer
- Bearing Type Sintered Bronze Bearing
- Bearing Projection ( D / F ) 0.13 x 0.13 mm
- Material Polyurethane
Product Compliance and Data
Additional Resources
Cross References
- RR-1030
- RR1030
