Miniature Bearings Australia
OR-04100-178-CR70-030 - Datasheet
MBA
Category Information

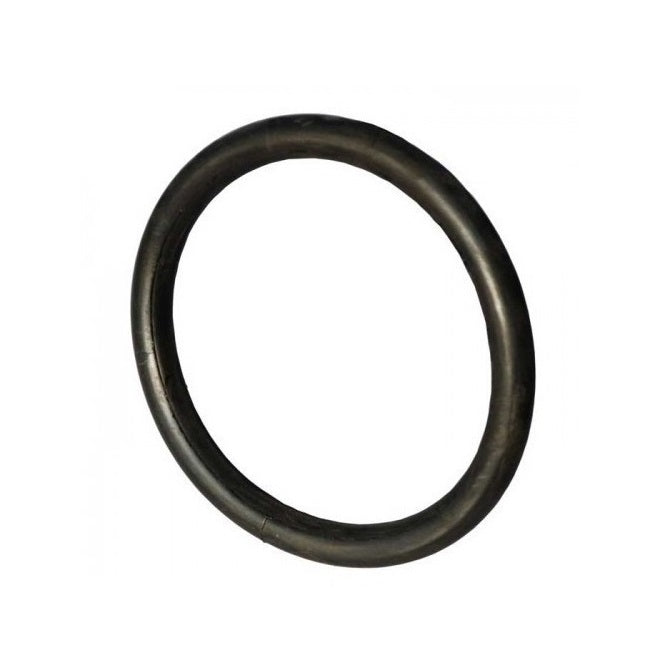

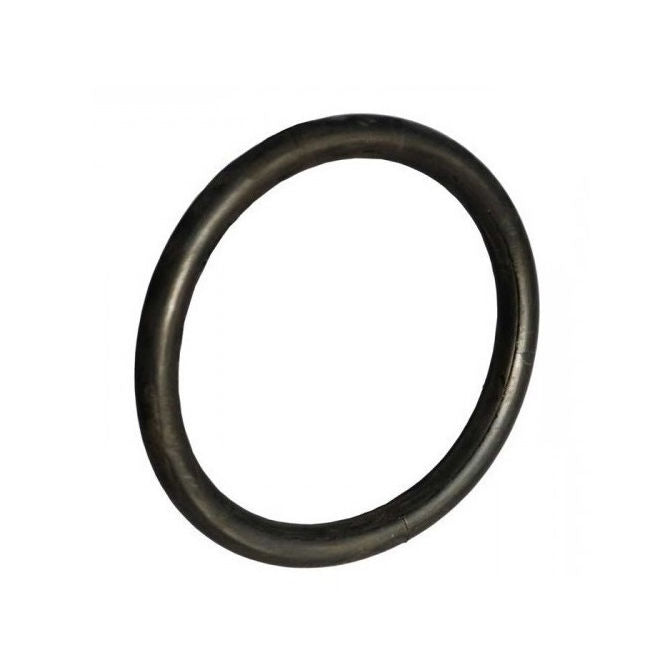

O-Rings - General Purpose - Neoprene RubberNeoprene Rubber General Purpose O-Rings. Excellent resistance to ageing and weathering effects.
- Temperature Range: -20 Deg C to +100 Deg C.
- Resistant to ozone and refrigeration chemicals such as freon 12 and 22.
- Moderate resistance to swelling in mineral oils, greases and water.
- Not resistant to aromatic compounds such as benzene, toulene, chlorinated hydrocarbons, esters, ethers or ketones.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Inside Diameter (ID)
:
41.00
mm
(Equiv. 1.614 in.) - Section (t)
1.78
mm
(Equiv. 0.07 in.) - Colour Black
- Hardness Duro 70
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- BS030-CR70
- BS030CR70
