E30208J - Datasheet

MBA

Category Information

Bearings - Tapered Roller Set - Single Row - Metric

Metric Single Row Tapered Roller Set Bearings. Includes cup and cone

  • Tapered roller bearings provide for high thrust and axial loads, and are commonly used in automotive applications such as wheels, differentials and gearboxes.
  • Matched sets include the cup and the cone.
  • An expanded range may be available on special order. Please enquire.

Product Data

  • Inside Diameter : 40 mm
    (Equiv. 1.575 in.)
  • Outside Diameter 80 mm
    (Equiv. 3.15 in.)
  • Assembled Width 19.750 mm
    (Equiv. 0.778 in.)
  • Cone Width 18 mm
  • Cup Width 16 mm
  • Radius Cone (min) 1.500 mm
  • Radius Cup (min) 1.500 mm
  • Basic Dynamic Load 63500 N
  • Basic Static Load 70500 N
  • Limiting Speed for Grease 4800
  • Limiting Speed for Oil 6500
  • Material Chrome Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

    View full details

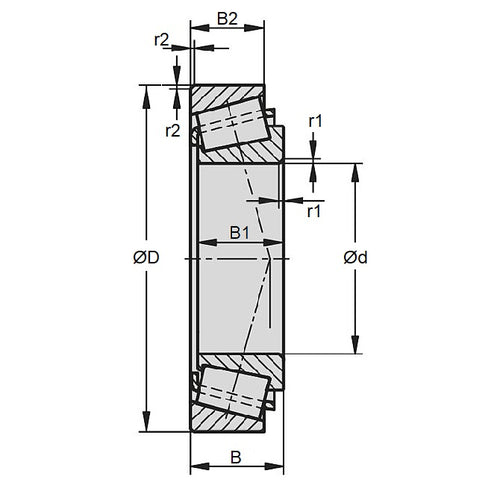

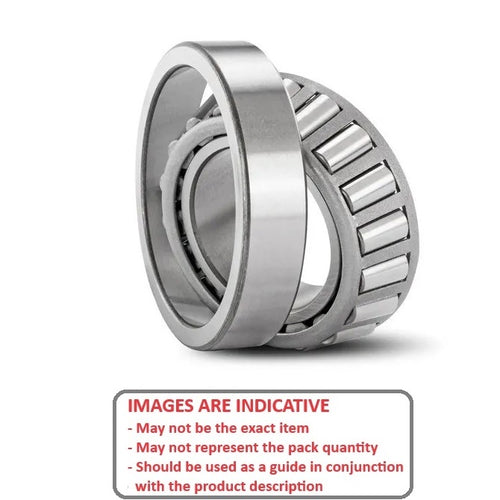

    E30208JDiagramE30208JImage
