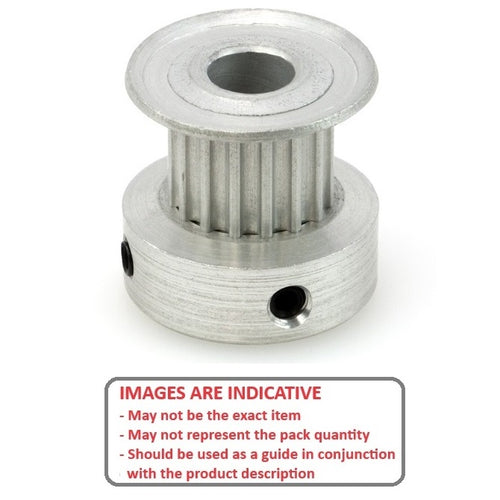

P-010T-040-060FH-AL-G-040 - Datasheet
MBA
Category Information
Pulleys - Metric Timing - 1.000mm Pitch - 6mm Wide6mm Wide 1.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit 1mm Pitch Timing Belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Aluminium Alloy
- With set screw
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 40
- Max Belt Width
6.00
mm
(Equiv. 0.236 in.) - Bore (d)
4.000
mm
(Equiv. 0.157 in.) - Bore Type Finished
- Locking Type Set Screw M2

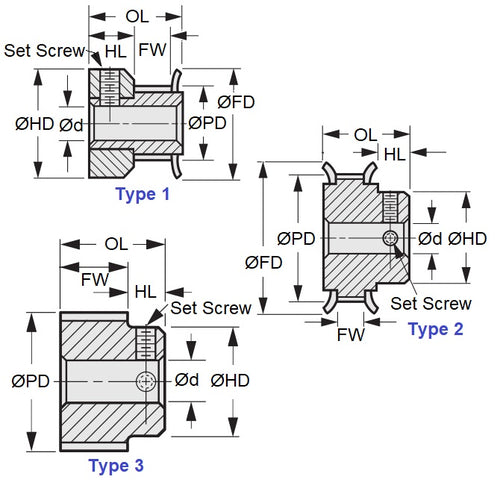

- Type 1
- Pitch Dia. (PD) 12.73 mm
- Flange Diameter (D1) 14.7 mm
- Overall Length 14.2 mm
- Hub Diameter (D2) 14.7
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- A6A18M040DF6004
- A 6A18M040DF6004
