COL-04000-063-18-ZP - Datasheet
MBA
Category Information

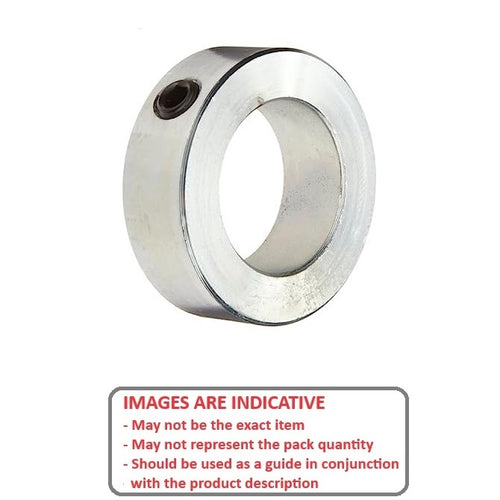

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
40.000
mm
(Equiv. 1.575 in.) - Outside Diameter (D)
63.00
mm
(Equiv. 2.48 in.) - Overall Width (S)
18.0
mm
(Equiv. 0.709 in.) - Screw Size M8
- Collar Style Standard
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor SCM-040-ZC
- SCM040ZC
