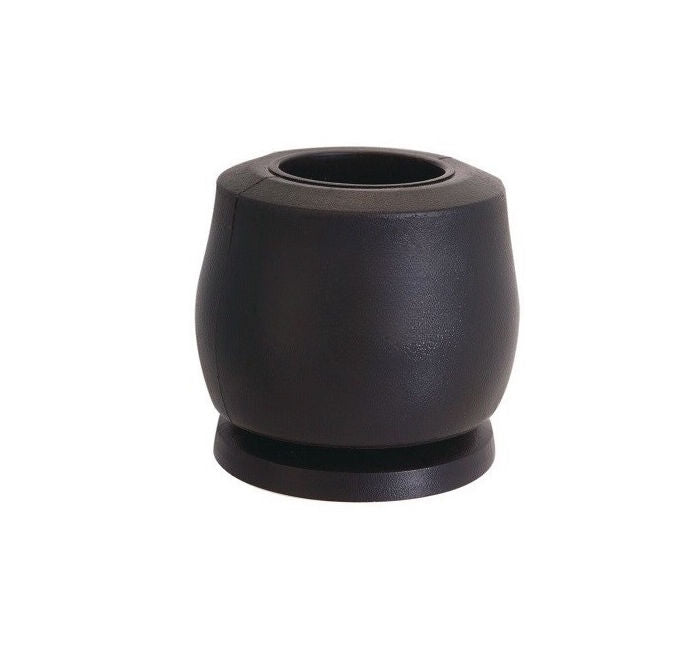

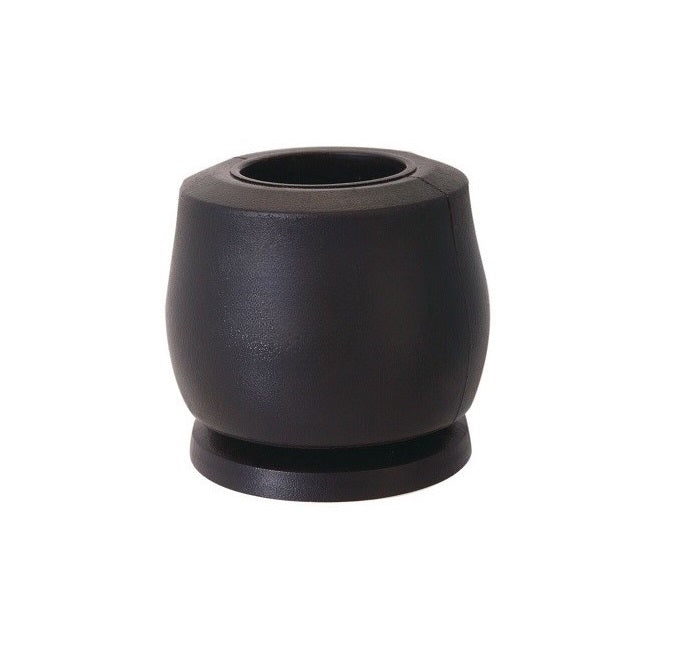

GBA-13RS - Datasheet
MBA
Category Information
Bumpers - Elastomer - Axial - High Energy - Compact - Short StrokeShort Stroke Compact High Energy Axial Elastomer Bumpers. Elastomer bumpers provide excellent resistance to chemicals and humidity. 20 times greater durability than urethane.
- 10 times greater durability than rubber and 500 times greater than steel coiled springs. Also see Mounts - Buffers
- Maintains excellent resilience at extreme temperatures and remains flexible with no material degradation between -62 oC and +148 Deg C (-80 Deg F and +300 Deg F)
- Mounting screws not included.
Product Data
- Peak Force : 28475 N
- Free Height (A)
60.5
mm
+/- 1.9
(Equiv. 2.382 in.) - Free Bulge
68.6
mm
+/ - 2.2
(Equiv. 2.701 in.) - Solid Height (B) 33.5 mm
- Base Diameter 59.7 mm +/- 0.8
- Wrench Opening (G) 34.3 mm +/- 0.8
- Mounting Hole (F) 13.7 mm
- Bulge at Solid Height 86.5 mm
- Material Elastomer
