IP-117RS - Datasheet
MBA
Category Information

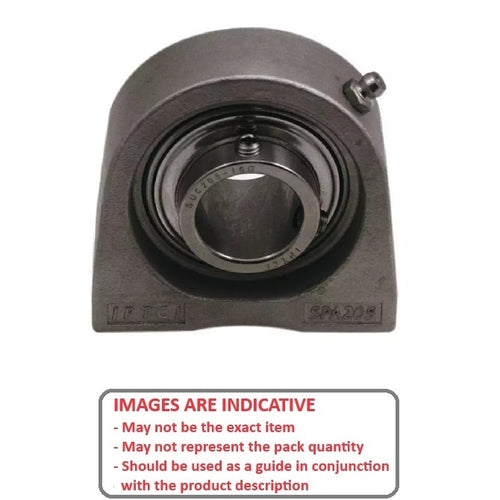

Housing and Bearing Assembly - Tapped Base - StainlessStainless Tapped Base Housing Assembly. Full stainless steel bearing units are the best solution for hostile chemical washdown applications. All metal bearing insert components are a combination of 302, 304 and 440 stainless steel. Seals are silicone rubber. Grease is H-1 food grade.
- Operating temperature minus 20 oC to +120 deg C
- Solid 304 stainless housings have a machined base and extremely smooth surface finish, essential for demanding washdown installations.
- These housings do not experience flaking, cracking or discolouration and are virtually unaffected by scrapes.
- Bearings are removable.
- Food grade
Product Data
- Bore
:
40.000
mm
(Equiv. 1.575 in.) - Centre Height (A)
49.200
mm
(Equiv. 1.937 in.) - Width (B)
117.000
mm
(Equiv. 4.606 in.) - Depth (C) 48.000 mm
- Bolt Depth (D) 19.000 mm
- Bolt Distances (E) 88.900 mm
- Thread (G) UNC
- K 49.200 mm
- L 30.200 mm
