Miniature Bearings Australia
CMB040-20-080M-R60 - Datasheet
MBA
Category Information

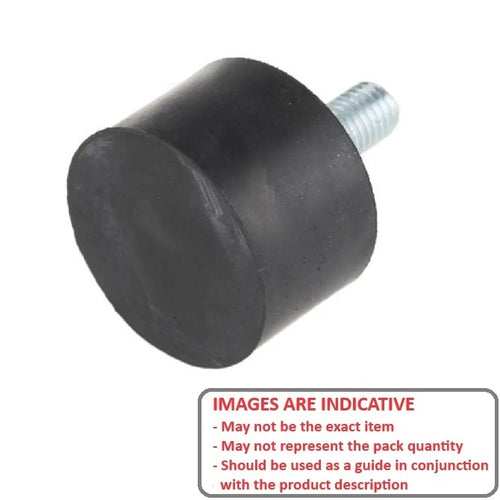

Mounts - Buffer - Male - RoundRound Male Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data

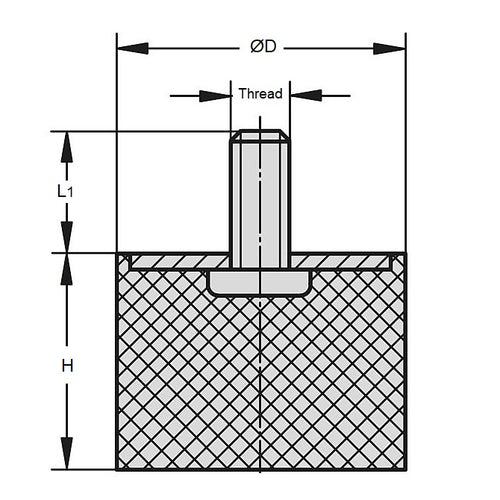

- Nom. Body Diameter (D)
:
40.0
mm
(Equiv. 1.575 in.) - Body Height (H)
20.0
mm
(Equiv. 0.787 in.) - Thread Size (G) M8x1.25
- Shore Hardness 60
- Thread Length (L1) 23.0 mm
- Compression Load 233 Kg
- Deflection 5.0 mm
- Configuration Male to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-VE4020-23
- CVE402023
- DZY84020
- D-ZY-8-40-20
- 4020MFB23-60
- 4020MFB2360
