SK036B-019-SL-CZ - Datasheet

MBA

Category Information

Screws - Countersunk - Slotted - Steel

Steel Slotted Countersunk Screws. Flat Head Countersunk UNC - UNF - BA - METRIC

  • An expanded range may be available on special order. Please enquire.
  • Nuts sold seperately - See Nuts.

Product Data

  • Thread Size (C) : 4 BA (3.607mm)
  • Overall Length (L) 19.1 mm
    (Equiv. 0.752 in.)
  • Material Zinc Plated Steel
  • Max Head Diameter 6.8 mm
  • Max Head Height 1.6 mm
  • Type Countersunk / Slotted
  • Pitch 0.660 mm
  • Threads Per Inch 38.49 TPI
  • Material Zinc Plated Steel
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • Hitech MSCSZP4BA34
View full details

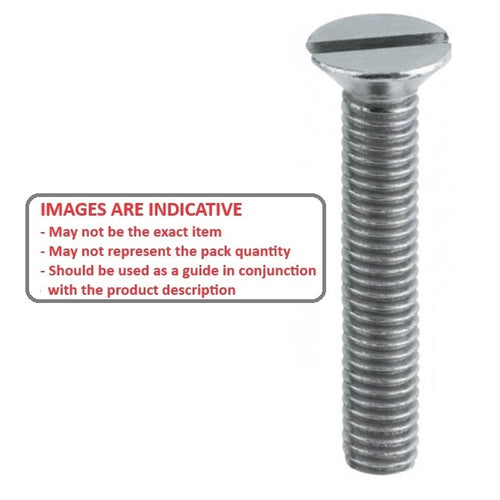

SK036B-019-SL-CZDiagramSK036B-019-SL-CZImage
