WR1106C-TTS-MC3 - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Extended Inner

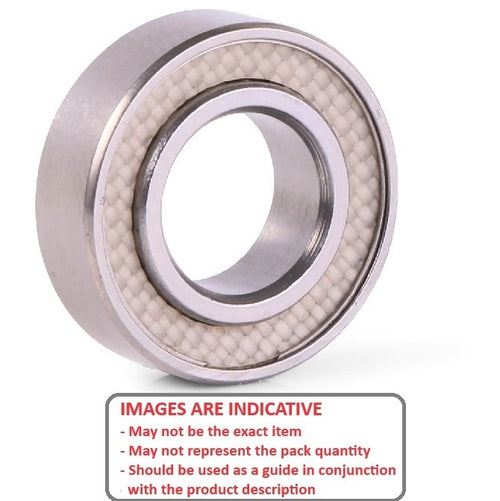

Extended Inner Precision Unflanged Single Row Ball Bearings. Single row radial ball bearings with extended inner ring (wide inner ring).

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
  • If the size you require is not available, you might consider using a standard bearing with shim washers.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

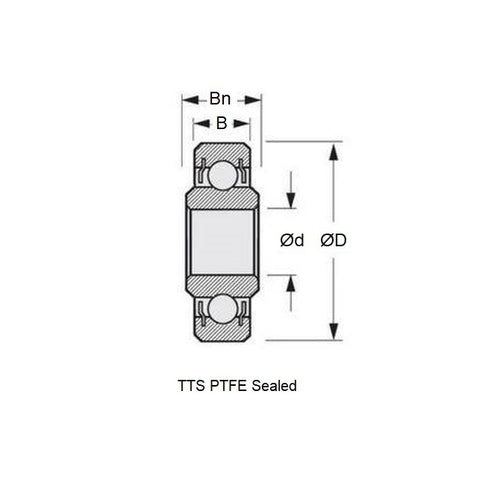

  • ID (d) : 4.826 mm + 0.000 / - 0.0075
    (Equiv. 0.19 in.)
  • OD (D) 15.875 mm + 0.000 / - 0.0075
    (Equiv. 0.625 in.)
  • Width (B) 5.944 mm + 0.000 / - 0.125
    (Equiv. 0.234 in.)
  • Inner Ring Width (Bn) 7.544 mm
  • Precision Grade Abec 1
  • Closure Type TTS
  • Bearing Type Radial with Extended Inner
  • Material Chrome Steel SAE 52100
  • Lubrication Type Grease
  • Lubrication Name Standard Unspecified
  • Basic Part WR1106C
  • Limiting Speed 26617.1
  • Cage Type Ribbon
  • Static Load Rating KGf 50
  • Dynamic Load Rating KGf 133
  • Radii Undefined mm
  • Inner Shoulder (UI) Undefinedmm
  • Outer Shoulder (UO) Undefined mm
  • Number of Balls Undefined
  • Clearance MC3 (5 to 10)
  • Precision Grade Abec 1
  • Closure Type TTS
  • Max Temperature 120 Deg. C
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • FAFNIR KP3A
  • NHBB KP3A
  • NHBB KP3AK
  • IJK KP3AX
  • NHBB MKP3A
  • WR1106C
  • WR1106CTTSMC3
  • WR1106C-TTSMC3
  • WR1106C Basic Size Ref
