CCE-00478-C - Datasheet
MBA
Category Information

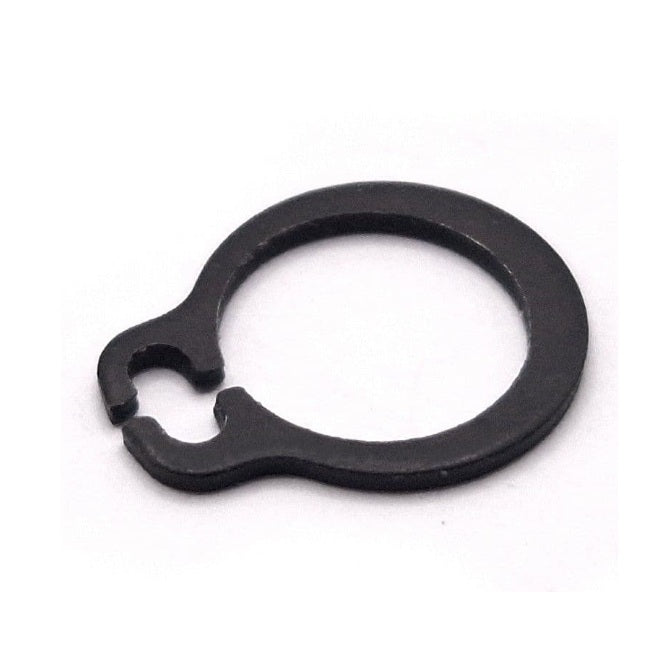

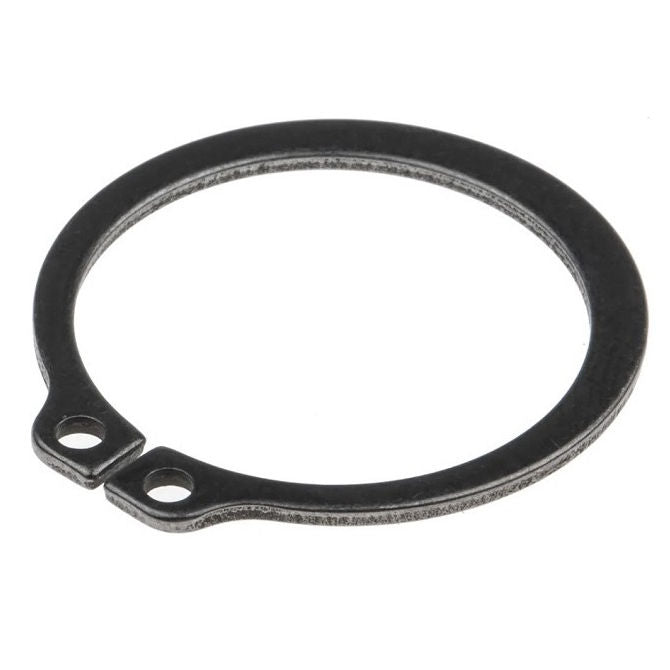

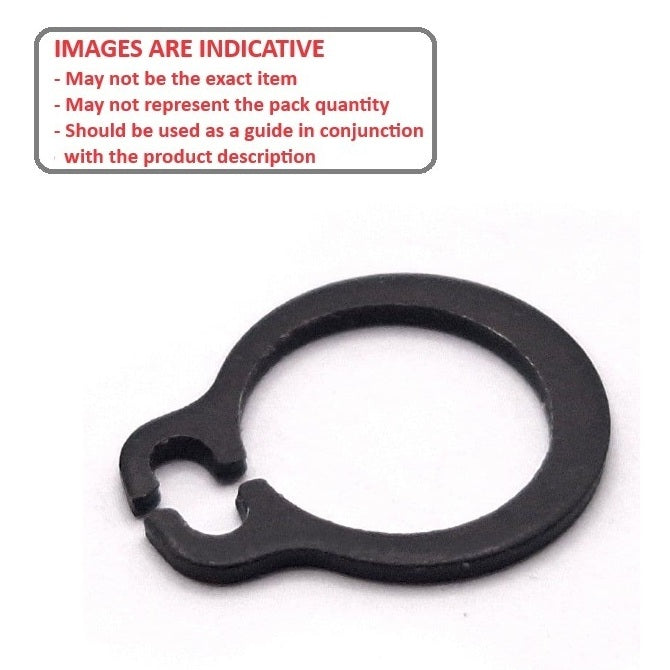

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds)
:
4.78
mm
(Equiv. 0.188 in.) - Clip Thickness (T)
0.38
mm
+/- 0.038
(Equiv. 0.015 in.) - Groove Dia. (Dg)
4.45
mm
+/- 0.051
(Equiv. 0.175 in.) - Approx. Loose Circlip ID (A) 4.27 mm
- Groove Width (W) 0.46 mm
- Clearance on Shaft (C1) 7.62 mm
- Clearance in Groove (C1) 7.26 mm
- Min. Lug Diameter (h) 0.58 mm
- Min. Extension (n) 0.56
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 97633A120
- NoCor SH-018
- SH018
- A9Q27-018,A3-16X.015IN
- A9Q27018,A316X015IN
