Category Information
Flexible Shafts - Panel Mount - OpenOpen Panel Mount Flexible Shafts. This is the main category in this series
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

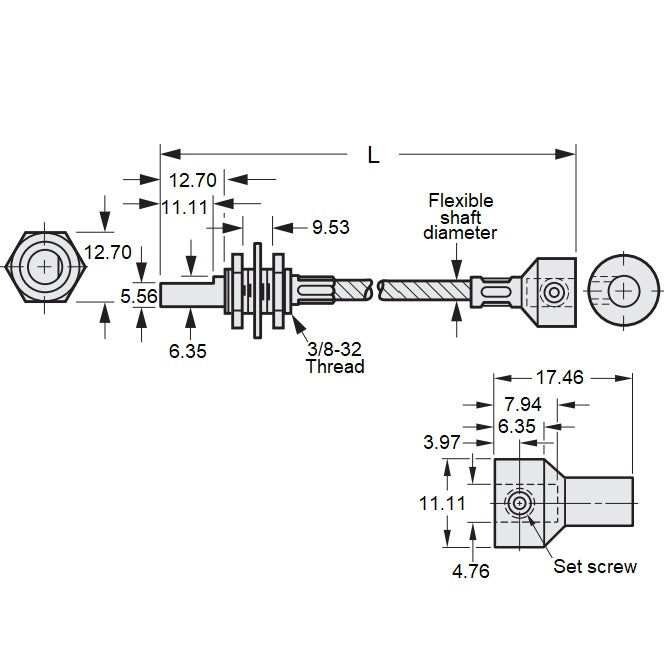

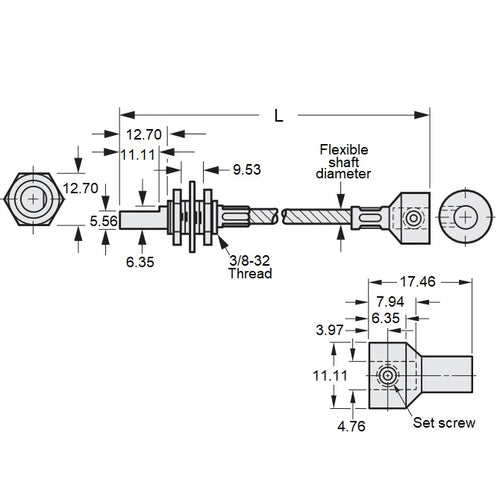

- Bore Size : Panel Mount 4.78 mm + 0.05 / - 0.00
- Length
228.6
mm
(Equiv. 9 in.) - Flexible Cable Diameter
4.80
mm
(Equiv. 0.189 in.) - End Fitting Type 2 / Panel Mount
- Material Steel / Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- A 7C13-09622
- A7C1309622
- A7C13-09622
