KW-048-540-C - Datasheet
ExaktKey
Category Information

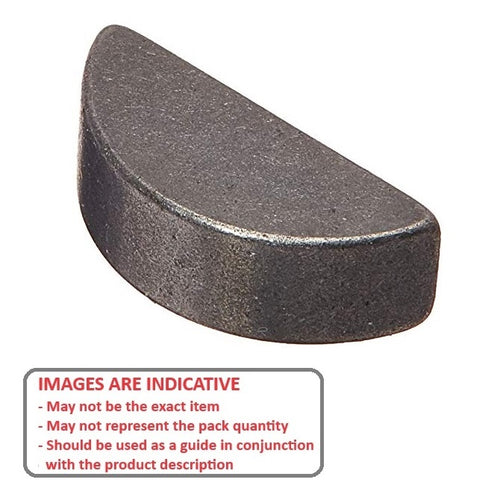

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data

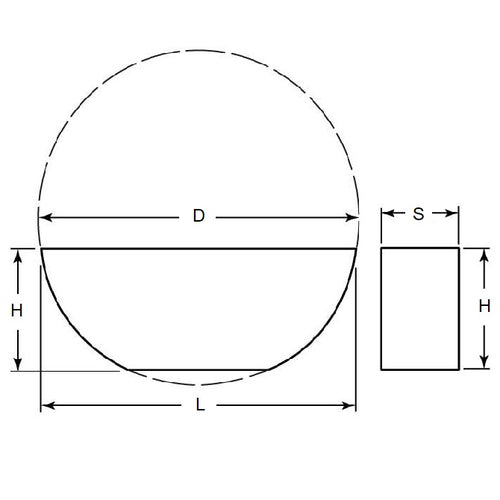

- Thickness (S)
:
4.76
mm
+/- 0.025
(Equiv. 0.187 in.) - Basis Diameter (D)
53.98
mm
+/- 0.250
(Equiv. 2.125 in.) - Approx. Height (H)
22.6
mm
(Equiv. 0.89 in.) - Finish Plain
- Hardness HRB 80
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- 98481A227
- NoCor WKA-026
- NoCor WKC-026
- NoCor WKC-126
- WKA026
- WKC026
- WKC126
