Miniature Bearings Australia
TP-048-0445-S3 - Datasheet
MBA
Category Information

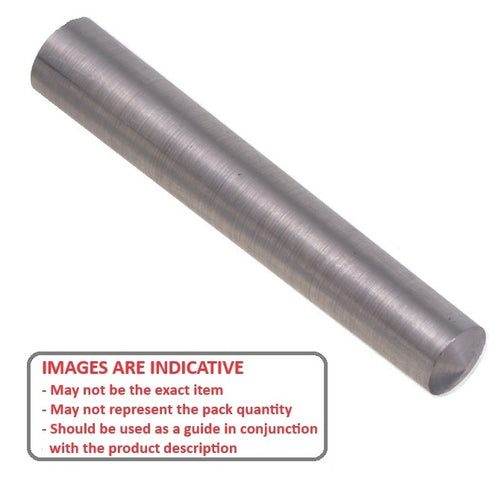

Pins - Taper Imperial - Standard - Stainless SteelStainless Steel Standard Taper Imperial Pins. Imperial Sizes Tapered 1:48 (1/4 in. per foot). Standard sizes numbers 0 to 14.
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

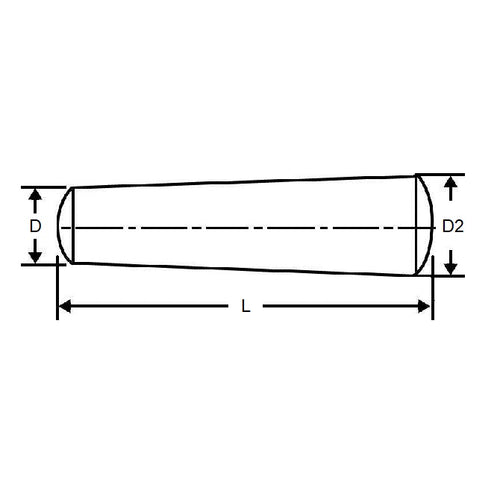

- Nom. Large End Diameter (D2) : 4.76 mm
- Length (L) 44.45 mm
- Nom. Small End Diameter (D) 3.97 mm
- Pin Number 2
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Huyett® TPS-02-1750
- NoCor® TPS-02-1750
- TPS021750
