Miniature Bearings Australia

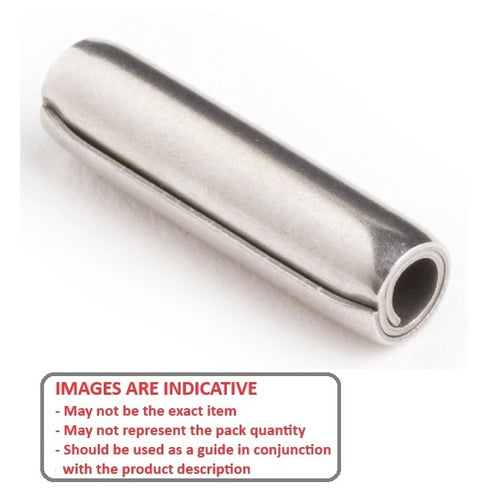

PSP-048-044-S2 - Datasheet
MBA
Category Information
Pins - Coiled - Stainless - Standard DutyStandard Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter : 4.76 mm
- Length
44.45
mm
+/- 0.50
(Equiv. 1.75 in.) - Drill Size 4.76 - 4.88 mm
- Loose Diameter 4.98 - 5.21 mm
- ISO Standard Duty ASME B18.8.2
- Hardness Unhardened
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Huyett® SPC3P-187-1750
- NoCor® SPC3P-187-1750
- SPC3P1871750
