CLP-048-0409-S4 - Datasheet
MBA
Category Information

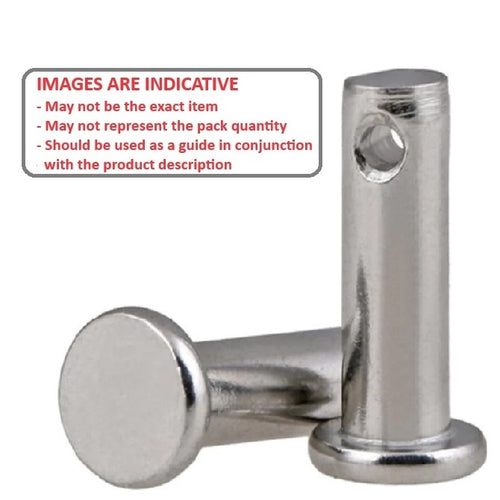

Pins - Clevis - Pin Locking - Stainless Steel 300 GradeStainless Steel 300 Grade Pin Locking Clevis Pins. Match with a suitable R-Clip or Spilt Pin - pin size shown in listings
- Non-threaded fastener with a head on one end and a hole/groove on the other, used to connect two or more parts in a way that allows for rotation, similar to a bolt, by passing through aligned holes.
- A retaining pin, such as a cotter pin, E-clip or R-clip, is inserted into the hole/groove at the end to keep the clevis pin secured in place.
- In addition to retaining parts on a shaft or axle, clevis pins can also be used as light duty axles, spring holders or even fishing line weights.
Product Data

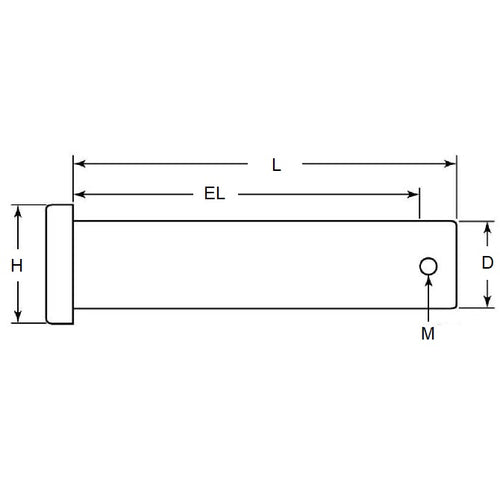

- Nominal Pin Diameter (D)
:
4.76
mm
- 0.04 / - 0.16
(Equiv. 0.187 in.) - Grip Length (EL)
40.87
mm
+ 0.51 / - 0.00
(Equiv. 1.609 in.) - Nom. Length (L)
44.45
mm
+ 0.51 / - 0.00
(Equiv. 1.75 in.) - Ret. Pin Dia. (M) 2.0 mm
- Material Stainless Steel 300 Series
Product Compliance and Data
Additional Resources
Cross References
- 92390A110
- NoCor CLPS-0187-1750
- NoCor CLPS-0187-1750/B
- NoCor CLPS-0187-1750-B
- CLPS01871750B
- CLPS01871750/B
