Miniature Bearings Australia
K-0476-0476-5080AO-C - Datasheet
ExaktKey
Category Information

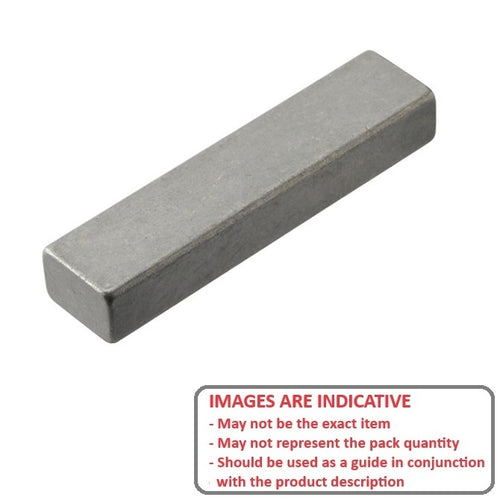

Keys - Machine - Carbon SteelCarbon Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data

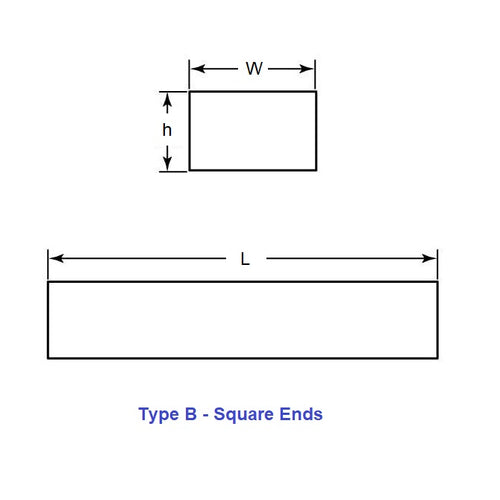

- Width (W)
:
4.76
mm
+ 0.051 / - 0.00
(Equiv. 0.187 in.) - Height (h)
4.76
mm
+ 0.051 / - 0.00
(Equiv. 0.187 in.) - Length (L)
50.80
mm
+/ - 0.25
(Equiv. 2 in.) - Finish Plain
- Tolerance Type Oversized
- End Type A (Rounded Ends)
- Material Carbon Steel C45
