K-0476-0476-2540B-Z - Datasheet
ExaktKey
Category Information

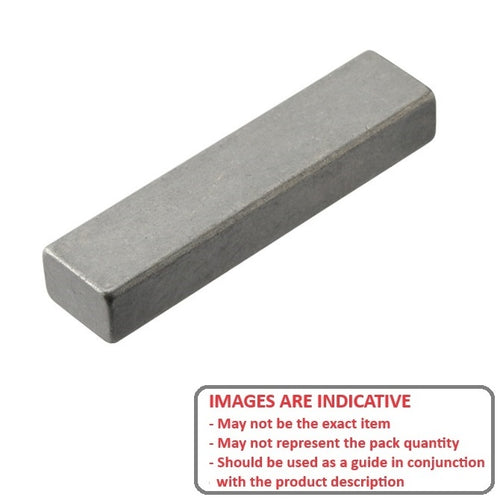

Keys - Machine - Carbon SteelCarbon Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data
- Width (W)
:
4.76
mm
+ 0 / - 0.051
(Equiv. 0.187 in.) - Height (h)
4.76
mm
+ 0 / - 0.051
(Equiv. 0.187 in.) - Length (L)
25.40
mm
+/ - 0.25
(Equiv. 1 in.) - Finish Zinc Electroplate
- Tolerance Type Standard

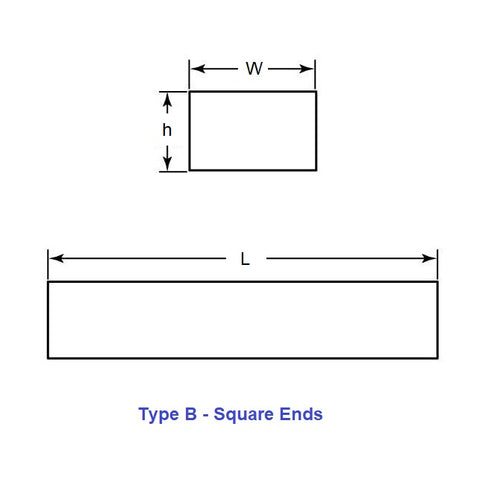

- End Type B (Square Ends)
- Material Carbon Steel C45 Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor 3101870187-1000
- 31018701871000
