K-0476-0476-1905B-C - Datasheet
ExaktKey
Category Information

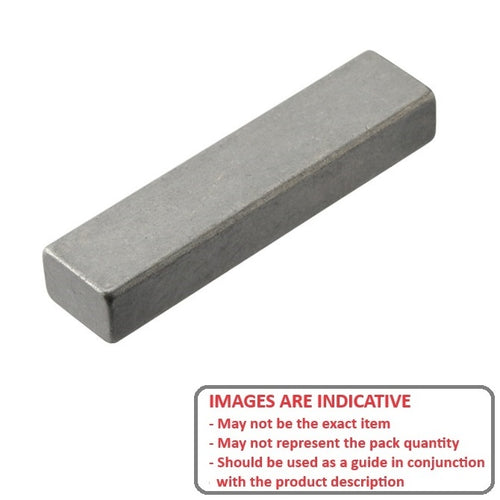

Keys - Machine - Carbon SteelCarbon Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Width (W)
:
4.76
mm
+ 0 / - 0.051
(Equiv. 0.187 in.) - Height (h)
4.76
mm
+ 0 / - 0.051
(Equiv. 0.187 in.) - Length (L)
19.05
mm
+/ - 0.25
(Equiv. 0.75 in.) - Finish Dry Rust Inhibitor
- Tolerance Type Standard Undersized

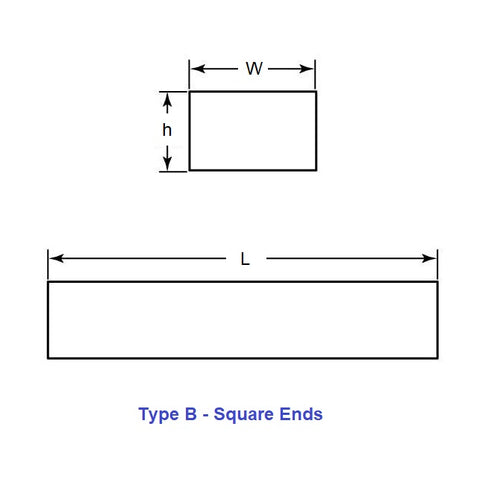

- End Type B (Square Ends)
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- A9C390624
- A9C39-0624
