Miniature Bearings Australia
KW-048-318-C - Datasheet
ExaktKey
Category Information

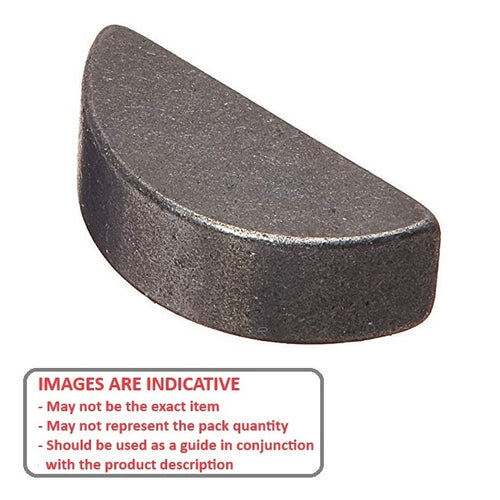

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data

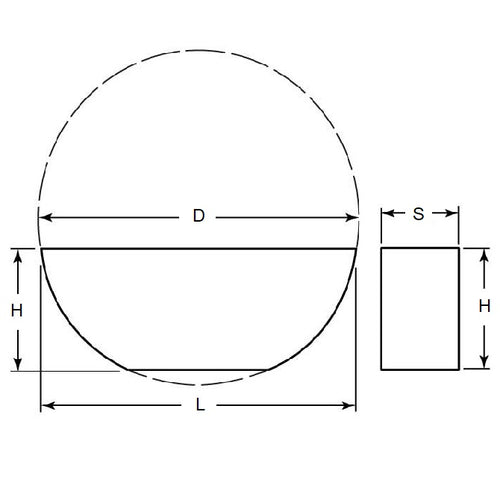

- Thickness (S)
:
4.76
mm
+/- 0.025
(Equiv. 0.187 in.) - Basis Diameter (D)
31.75
mm
+/- 0.250
(Equiv. 1.25 in.) - Approx. Height (H)
13.3
mm
(Equiv. 0.524 in.) - Finish Plain
- Hardness HRB 80
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- WOODRUFF 610
- 98481A220
- NoCor WKA-019
- NoCor WKC-019
- WKC019
- WKA019
