Miniature Bearings Australia
KW-048-254-C - Datasheet
ExaktKey
Category Information

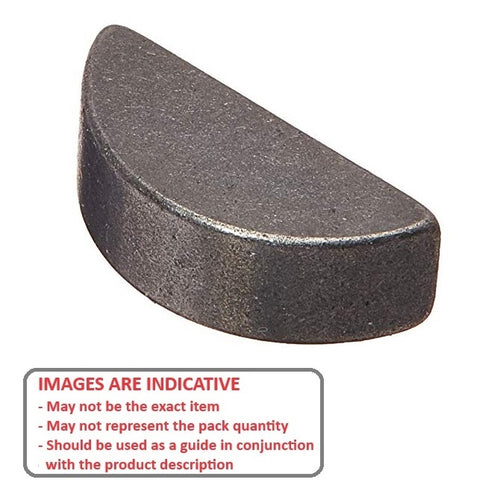

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.

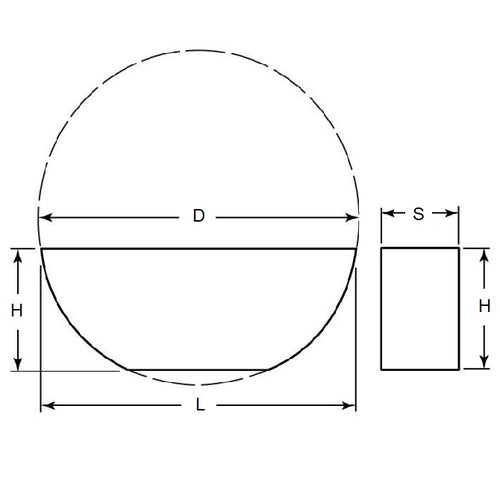

Product Data
- Thickness (S)
:
4.76
mm
+/- 0.025
(Equiv. 0.187 in.) - Basis Diameter (D)
25.40
mm
+/- 0.250
(Equiv. 1 in.) - Approx. Height (H)
10.7
mm
(Equiv. 0.421 in.) - Approx. Length (L) 24.89 mm
- Finish Plain
- Hardness HRB 80
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- WOODRUFF 608
- 98481A160
- NoCor WKA-013
- NoCor WKC-013
- WKC013
- WK-11
- WK11
- WKA013
