RP048-0191-420 - Datasheet
MBA
Category Information

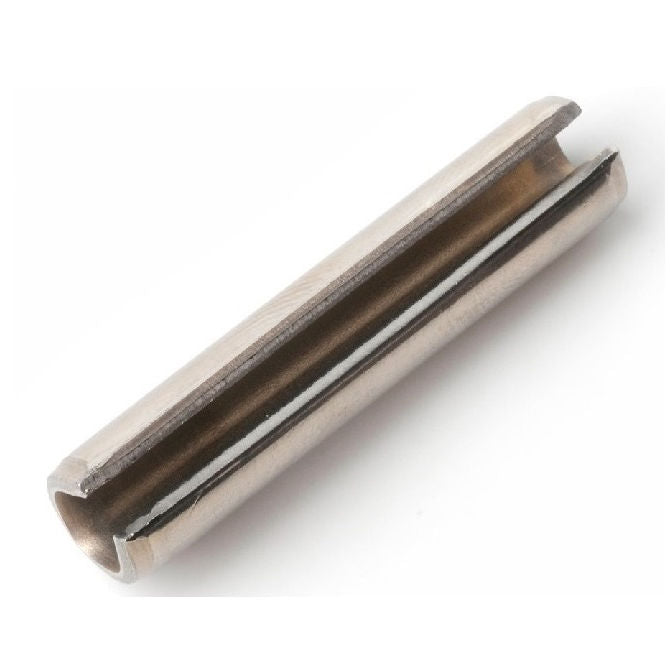

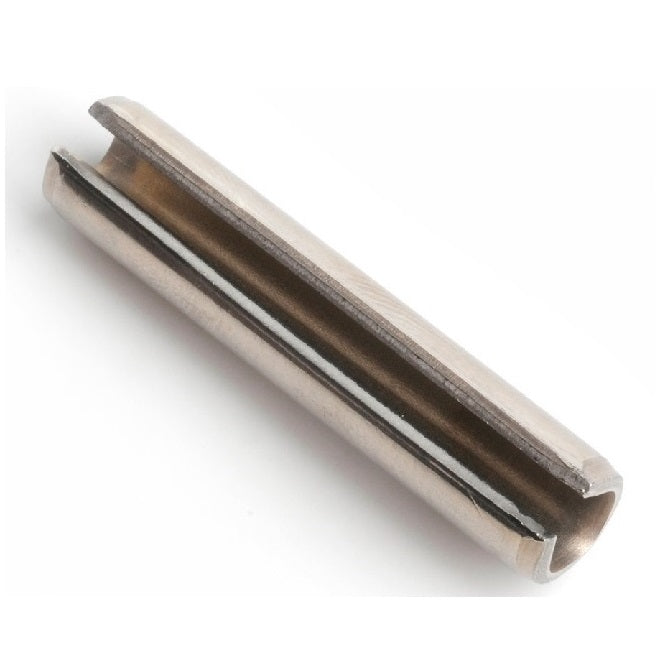

Pins - Roll - Stainless Steel - 420 Grade420 Grade Stainless Steel Roll Pins. 420 grade stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 4.76 mm
- Length (L) 19.10 mm
- Free Diameter 5.24 mm
- Thickness (S) 1.02 mm
- Chamfer Length (cL) 0.28-1.40 mm
- Chamfer Diameter (cD) 4.6 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel AISI 420C Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 803116
- 92383A727
- Small Parts DWX-3-12
- Reid Tool® P-225
- NoCor® SPS420-187-0752-420SS
- Huyett® SPSP-187-0750
- NoCor® SPSP-187-0750
- NoCor® SPSP-187-0752-420SS
- SPS4201870752420SS
- SPSP1870752420SS
- SPSP1870750
- DWX312
- P225
- A9Y350624
- A9Y35-0624
