TP-048-0191-C - Datasheet
MBA
Category Information

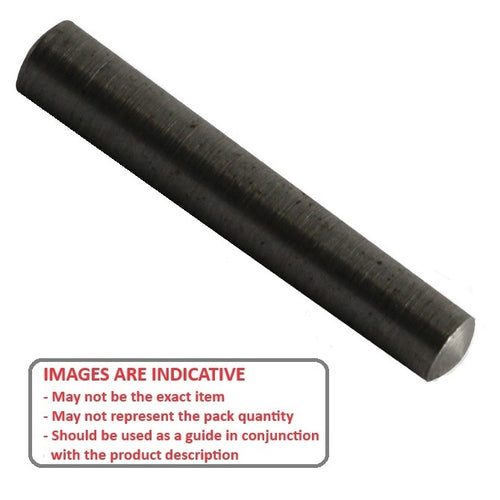

Pins - Taper Imperial - Standard - Carbon SteelCarbon Steel Standard Taper Imperial Pins. Imperial Sizes Tapered 1:48 (1/4 in. per foot). Standard sizes numbers 0 to 14.
- An expanded range may be available on special order. Please enquire.
Product Data

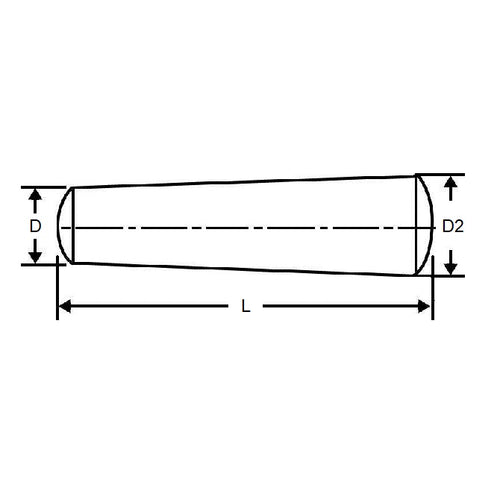

- Nom. Large End Diameter (D2)
:
4.76
mm
(Equiv. 0.187 in.) - Length (L)
19.05
mm
(Equiv. 0.75 in.) - Nom. Small End Diameter (D)
4.37
mm
(Equiv. 0.172 in.) - Pin Number 2
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 98390A220
- NoCor TP-02-0750
- TP020750
