KW-048-159-C - Datasheet

ExaktKey

Product Data

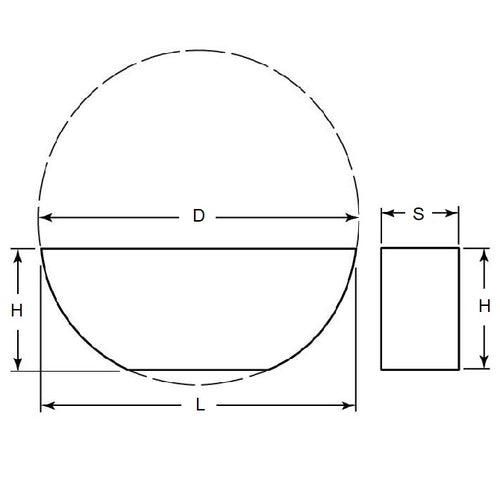

• Thickness (S) : 4.76 mm _{+/- 0.025}
  (Equiv. 0.187 in.)
• Basis Diameter (D) 15.88 mm _{+/- 0.250}
  (Equiv. 0.625 in.)
• Approx. Height (H) 6.4 mm
  (Equiv. 0.252 in.)
• Finish Plain
• Hardness HRB 80
• Material Carbon Steel C45

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Keysteel Catalogue PDF


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• WOODRUFF 605
• 98481A110
• NoCor WKA-061
• NoCor WKC-061
• NoCor WKC-061-ZC
• WKC061
• WKC061ZC
• WKA061
