Miniature Bearings Australia
BF0048-0079-0127-PRJ - Datasheet
MBA
Category Information

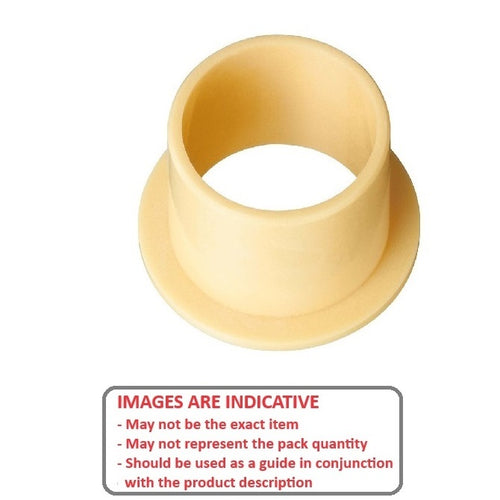

Bushes - Flanged - Plastic - Rulon JRulon J Plastic Flanged Bushes. Max Load: 5.2 MPa (750 psi). Gold colour. Max surface speed: 2m/s. Max PV: 0.26 (Mpa x m/s)
- An expanded range may be available on special order. Please enquire.
- Non Metallic Bushes. Excellent insulator. Nor suitable for steam or wet conditions. Not FDA compliant. Suitable for dry conditions or vacuum.
- 288 oC (550 Deg F) Maximum Working Temperature.
- Patented all polymeric PTFE compound which operates well against soft mating surfaces.
- Lowest co-efficient of friction in the Rulon(R) product range.
Product Data
- Nominal Inside Diameter (d)
:
4.763
mm
+ 0.15 / + 0.20
(Equiv. 0.188 in.) - Nominal Outside Diameter (D)
7.937
mm
+ 0.06 / + 0.11
(Equiv. 0.312 in.) - Length (s)
12.700
mm
+ 0.00 / - 0.25
(Equiv. 0.5 in.) - Flange OD (D1) 11.10 mm
- Flange Thickness (s1) 1.59 mm
- Rec. Housing Bore 7.925 / 7.889 mm
- Rec. Shaft Size 4.763 / 4.737
- Material Rulon J
Product Compliance and Data
Additional Resources
- DU Bush Material Information
- General Bushes Catalogue
- Sintered Bronze Products Catalogue
- Solid Bronze Bushes catalogue
Cross References
- 6377K25
- Rulon DRJF-0305-4-J
- Small Parts FBP-3-8
- DRJF03054J
- FBP38
