SR3B-Z-MC3-JP6-L23 - Datasheet
MBA
Category Information

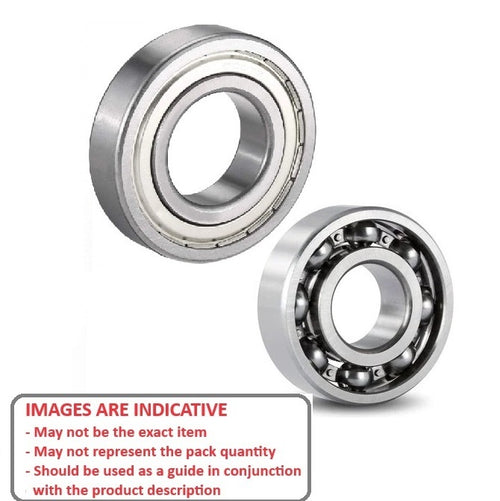

Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

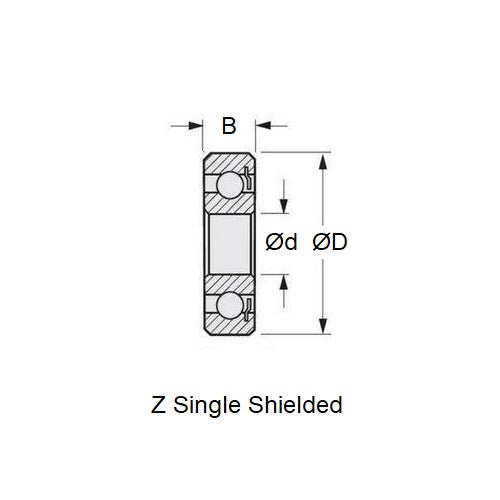

- ID (d)
:
4.763
mm
+ 0.000 / - 0.007
(Equiv. 0.188 in.) - OD (D)
12.700
mm
+ 0.000 / - 0.007
(Equiv. 0.5 in.) - Width (B)
2.779
mm
+ 0.000 / - 0.120
(Equiv. 0.109 in.) - Precision Grade P6
- Closure Type Z
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Oil
- Lubrication Name L23 Windsorlube L245X
- Basic Part R3B
- Limiting Speed 38362.8
- Cage Type Standard
- Static Load Rating KGf 28
- Dynamic Load Rating KGf 72
- Radii Undefined mm
- Inner Shoulder (UI) Undefinedmm
- Outer Shoulder (UO) Undefined mm
- Number of Balls Undefined
- Clearance MC3 (5 to 10)
- Precision Grade P6
- Closure Type Z
- Max Temperature 170 Deg. C
