REM-048-L-CB - Datasheet
MBA
Category Information

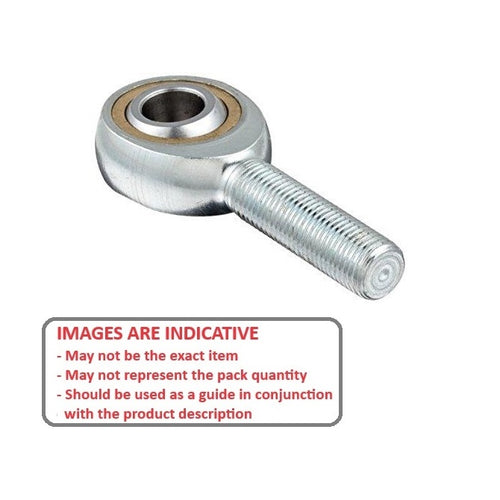

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data

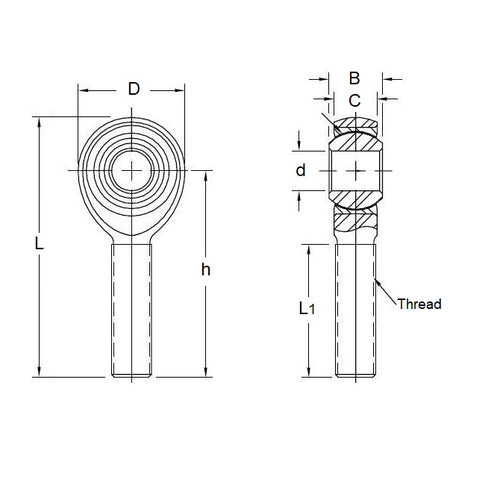

- Eye Size (d1)
:
4.763
mm
(Equiv. 0.188 in.) - Overall Length (L)
39.70
mm
(Equiv. 1.563 in.) - Thread Size 10-32 UNF Left
- Min. Thread Length (l2) 19.05 mm
- Head Width (W) 6.35 mm
- Eye Width (W1) 7.92 mm
- Head Diameter (D) 15.88 mm
- Centre Height (l1) 31.75 mm
- Grease Nipple Yes
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- 6072K61-LEFT
- ASAHI JAMB3L
- KWK KMB3L
- IKO POSB3L
- Nachi POSB-3L
- NTN SMI-B3L
- SMIB3L
- 6072K61LEFT
