Miniature Bearings Australia
0R-0048-0045-S3-T12 - Datasheet
MBA
Category Information

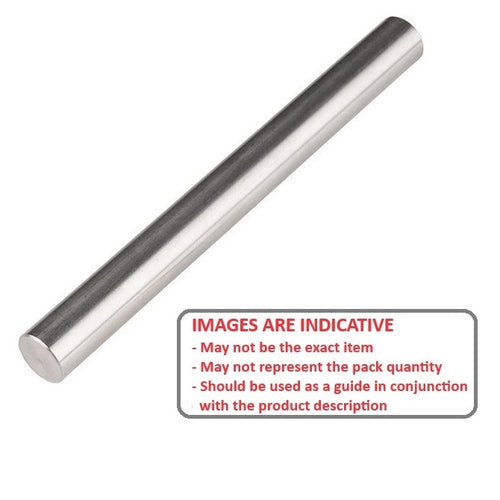

Shafting - Precision Ground - Stainless - 303 Grade303 Grade Stainless Precision Ground Shafting. Precision ground shafting.
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

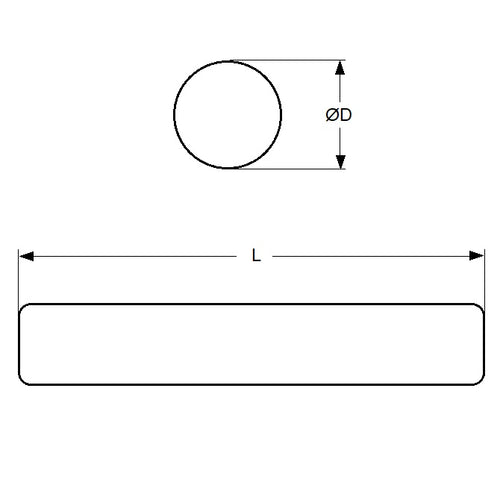

- Diameter (d)
:
4.762
mm
- 0.007 / - 0.012
(Equiv. 0.187 in.) - Length (L)
44.5
mm
(Equiv. 1.752 in.) - Material 303 Stainless Steel
- Straightness 0.0003 mm / mm
- Surface Finish Ground 0.25 um Microns
- Hardness HRB 84
- Ends Chamfered
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- A 7X 1-06017
- A7X106017
- A7X1-06017
