Miniature Bearings Australia
ES-0450-0121-06-S2 - Datasheet
MBA
Category Information

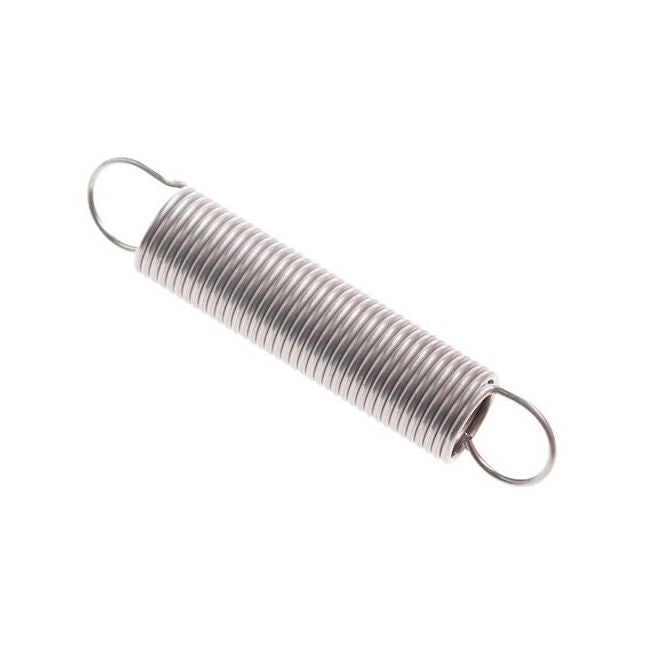

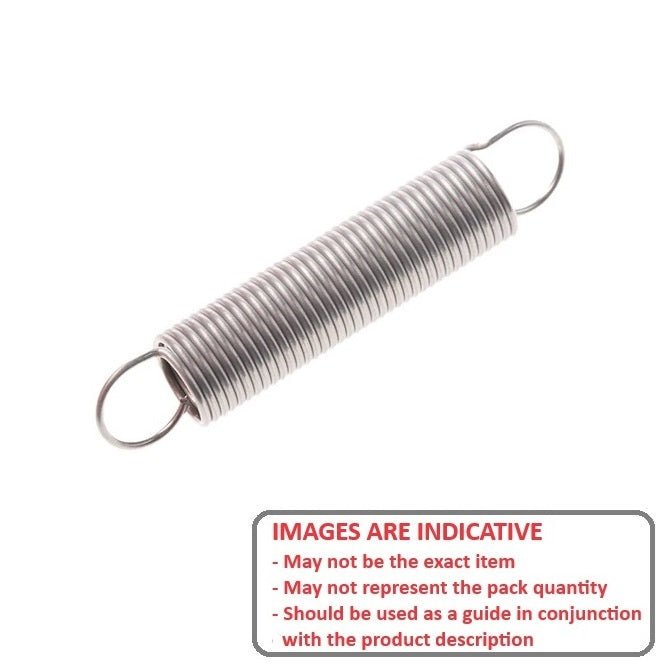

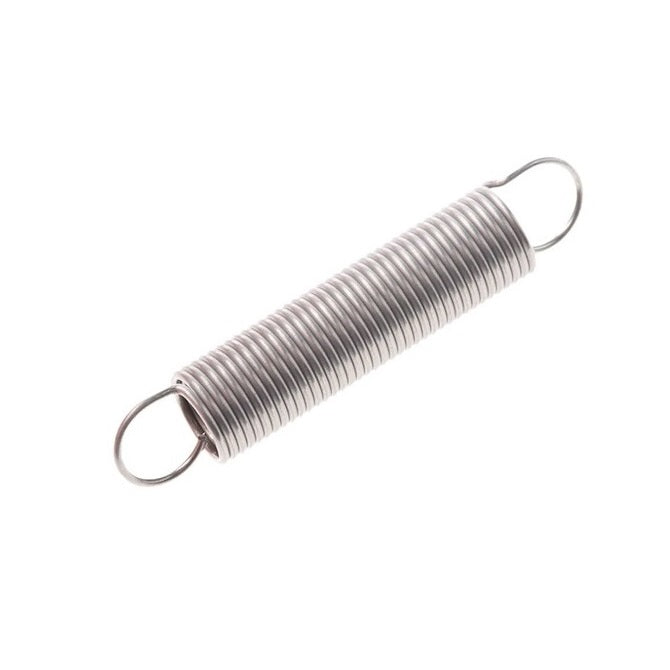

Springs - Extension - Stainless SteelStainless Steel Extension Springs. 300 gradd stainless steel selection, including 303, 304 and 316.
- Helical spring that absorbs and stores energy by resisting a pulling force. When extended, it stores energy, and when released, it redistributes that energy to return to its original, coiled shape.
- Typically used to provide a pulling force between two objects, often with hooks or loops on either end for attachment.
- This category includes short and long lengths. An expanded range may be available on special order. Please enquire.
- 302 Stainless springs not recommended for applications exceeding 260 Deg C (500 Deg F).
- 302 stainless steel is slightly magnetic.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

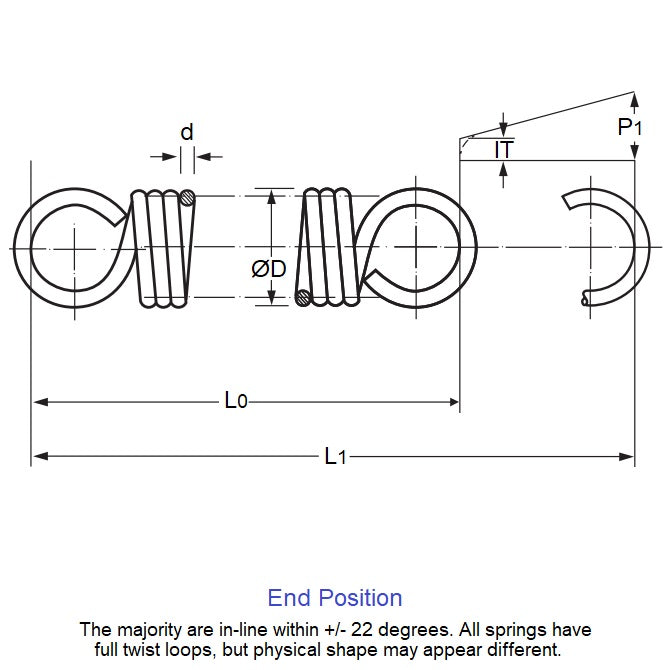

- OD (D0)
:
4.50
mm
(Equiv. 0.177 in.) - Approx. Overall Length (L0)
12.1
mm
(Equiv. 0.476 in.) - Wire Diameter (d)
0.63
mm
(Equiv. 0.025 in.) - Max. Extension (L1) 17.75 mm
- Spring Rate 2.31 N/mm
- Initial Tension (IT) 2.2 N
- Load at L1 15.25 N
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- ET4108
